Steel & Metal CZ Purlin Roll Forming Machine (Auto Interchange Type)
The equipment I am introducing here is the PLC adjustment CZ purlin making machine—a versatile, all-in-one steel purlin roll forming machine capable of producing both C-type and Z-type steel profiles.
Both C- and Z-type steel profiles serve primarily as roof purlins and wall girts in steel-structure buildings, providing support for roofing and wall cladding materials. Thanks to their lightweight yet high-strength properties, superior structural performance resulting from optimized cross-sections (particularly the Z-type, which can be overlapped to form continuous beams), ease of installation, and significant cost savings on steel materials, they have become the preferred skeletal components for modern steel-structure construction, making this automatic cz purlin roll forming machine (also known as a Cz purlin roll forming machine) an ideal choice.
Component Introduction

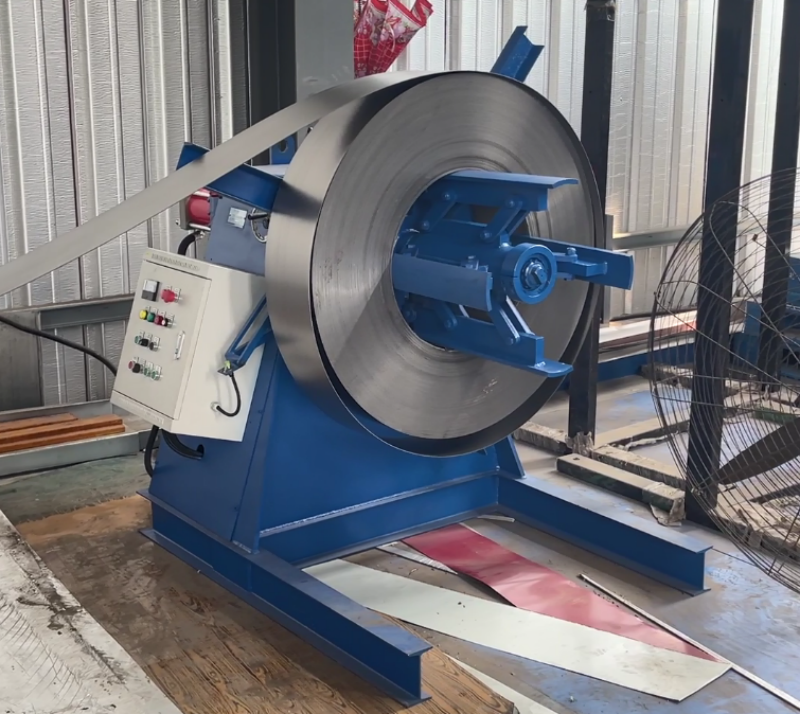

1.Automatic Decoiler System
Hydraulic system is used to be the power of open and closure of segments. The speed sensor of the decoiler enables the decoiler to automatically adjust the speed to match up the roll forming machine.
2.Feeding and Leveling
Make sure the input steel sheet straight and neat then the roll forming process could be made accuracy.

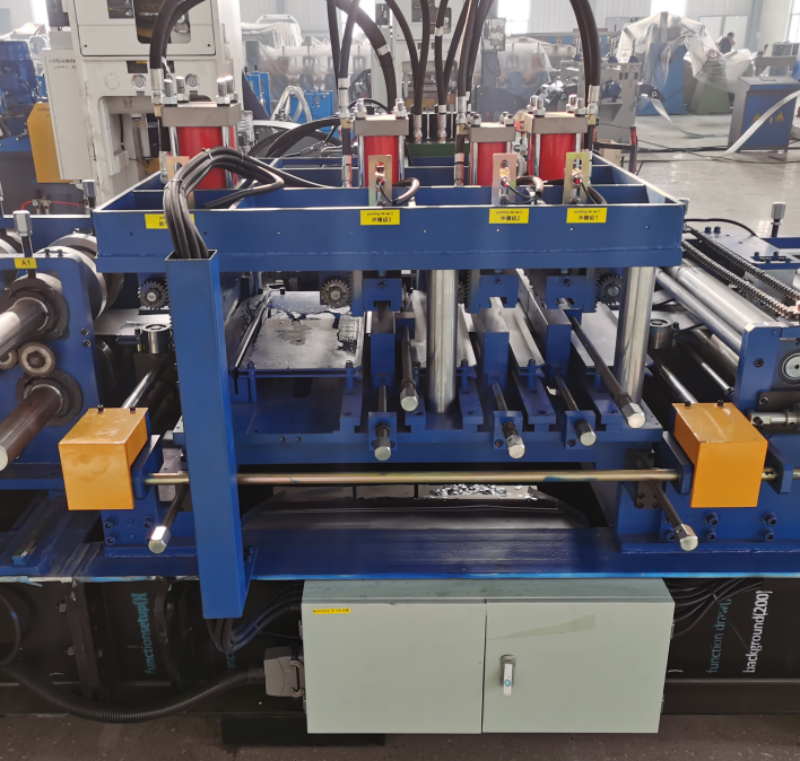

3.Punching System
You can set the holes quantity and location on the touch screen. And you can also adjust the two holes horizontal distance by manual adjust handle.
4. Main Roll Forming System
Machine base frame adopt H beam welding steel. In the main roll forming machine have 2 buttons for urgency stop if happen any malfunction. Machine adopt iron cast as station to make machine stable and strong.

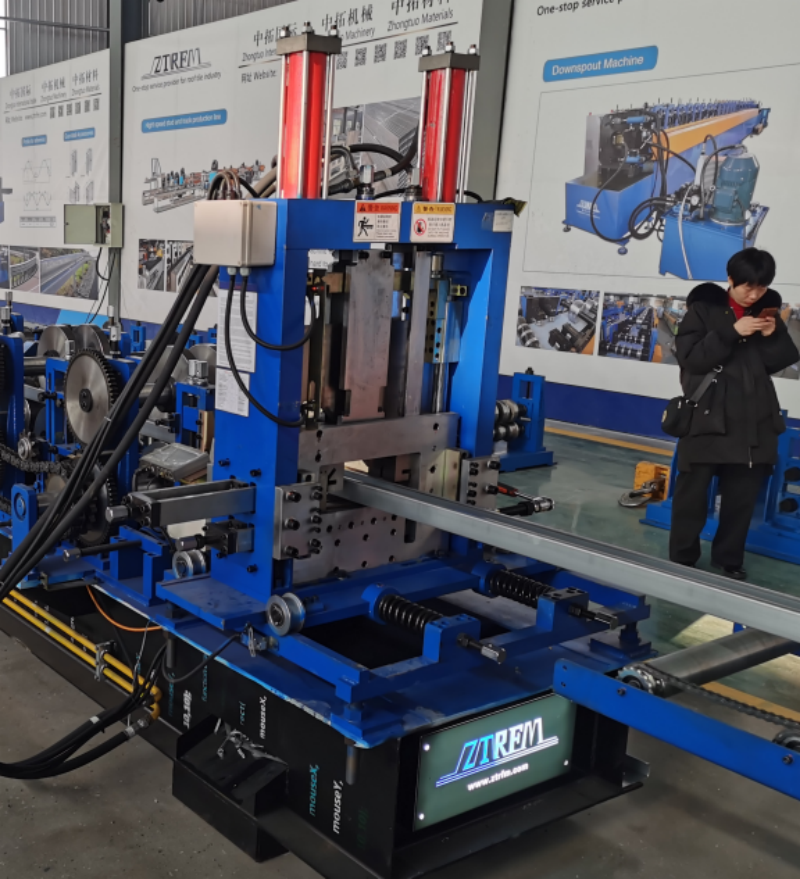

5.Cutting System
Adopt post-cutting, hydraulic drive and automatic location to decide the dimension and cut the target products, ensure stability, precision and cutting speed.

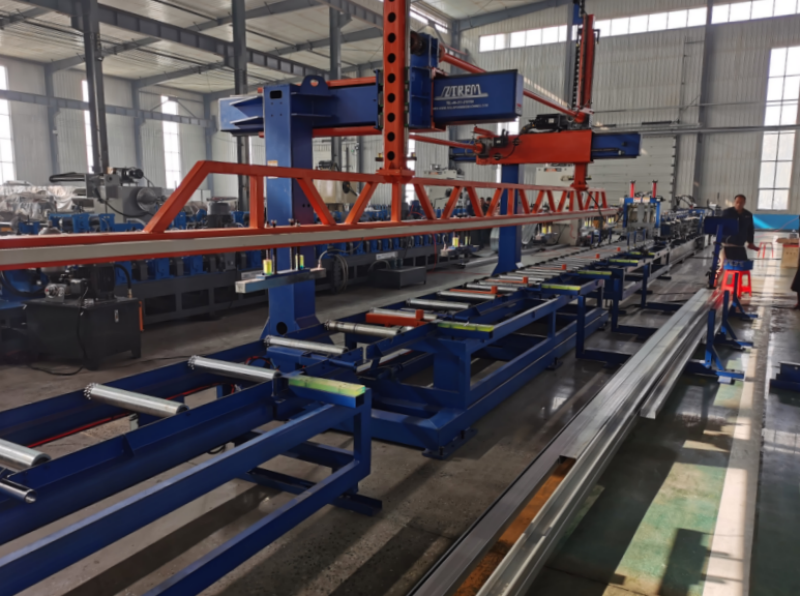

6.Automatic Stacker
This is an automatic stacker, used to receiving the purlin after cut off, this machine have motor conveyor, after the purlin cut off, it will send to the electromagnet part and do the stacking.
7.Hydraulic Station
It is controlled by the gear oil pump. After filling the hydraulic oil into the hydraulic oil tank, the hydraulic pump drives the shear to wok and the punching operation.

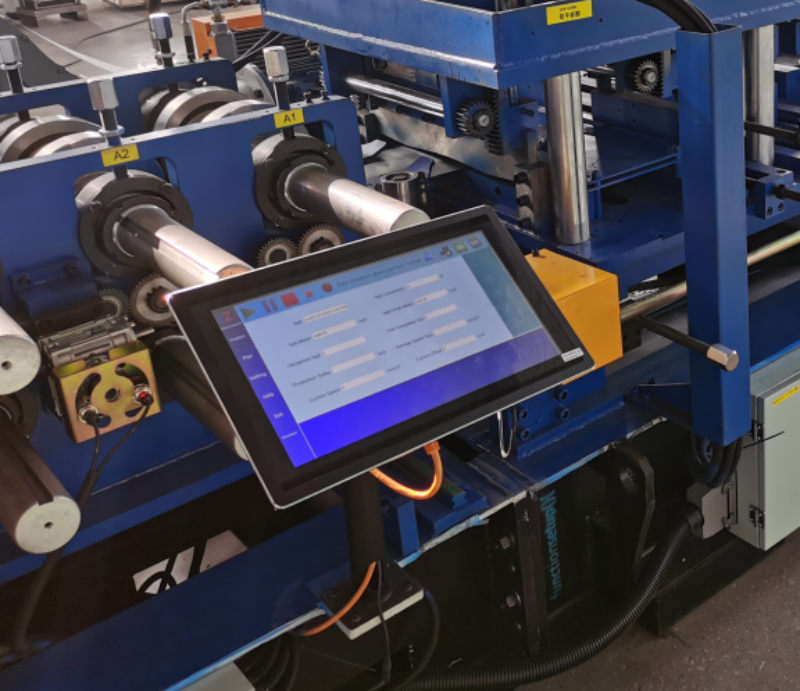

8.Electric Control System
The PLC powered by the software that controls the automation of the processes of forming cutting and punching, will be of the latest technology available and allow the operator through a touch screen enter quickly and reliably all data to meet a predetermined Production.
