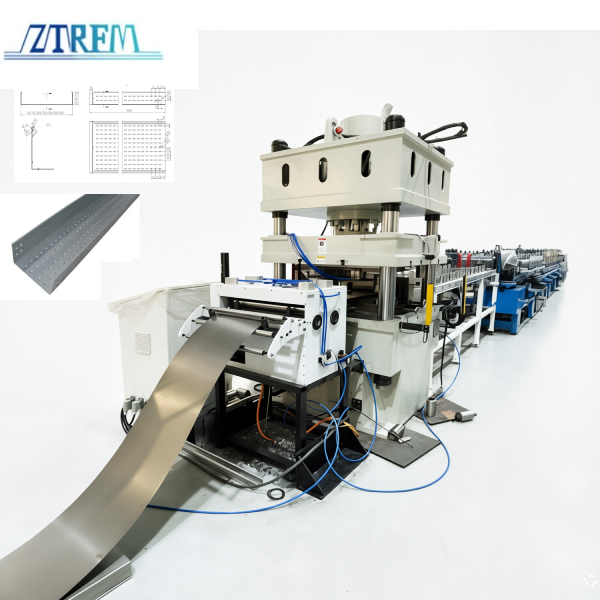

Precision Engineered Cable Tray Production Line
Nowadays, people's reliance on electricity is increasing, and cable laying operations are becoming more and more common. However, the cable trays that support the cables are mostly still made by a combination of machinery and manual work, which have obvious shortcomings in terms of precision and speed. The application scope of cable trays is very wide, including buildings, industrial plants, power stations, data centers, rail transit, chemical industries, new energy, military industries, light industry, and textiles, etc. Considering the huge market demand at present, we also want to solve this problem for customers who need to use a large number of cable trays. Therefore, we have produced a cable tray production line.
This machine has the following advantages:
- Precise and stable performance, reducing rework losses
Width and length tolerance of ±1mm, forming angle of 90° ±2°, precise online punching hole positions, the finished product directly meets the installation standards, reducing scrap rate and saving raw material costs.
- High efficiency, enhancing delivery capacity
Production speed of 6-12 meters per minute, paired with an 8-ton decoiler and a 400-ton punch press, supporting continuous batch production, significantly shortening the order delivery cycle.
- Durable components, reducing maintenance costs
Cr12 rollers, 65mm main shaft, 30 forming stations, wear-resistant and durable, resistant to deformation over extended use, reducing the frequency of component replacement and downtime.
- High automation level, reducing reliance on manual labor
Seamless automated integration automated connection, no need for manual intervention in key processes, reducing labor costs and operational error risks, ensuring stable production.
Machine Parameters
| Parameter | Value |
|---|---|
| Model | 600/100 |
| Machine floor space | 38 × 2.0 × 2.0 (L×H×W) meters |
| Strip width range | 220 – 850 mm |
| Strip thickness range | 0.5(±0.03) – 2.0(±0.03) mm |
| Product bottom width | 100 – 600 mm |
| Product height | 50 – 100 mm |
| Product length | 2000 – 6000 mm |
| Online punching & forming speed | 6 – 12 m/min (depends on length and hole quantity) |
Production Process

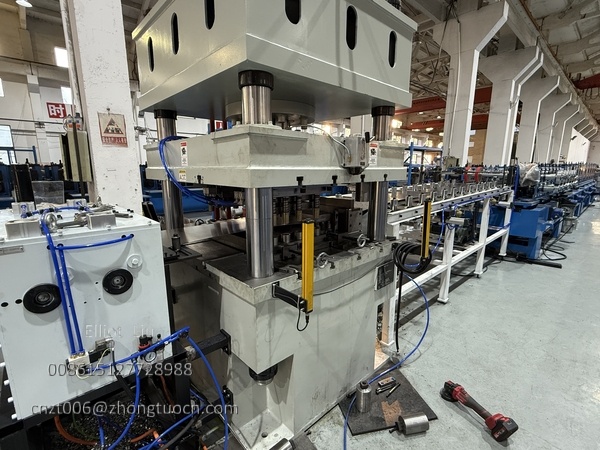

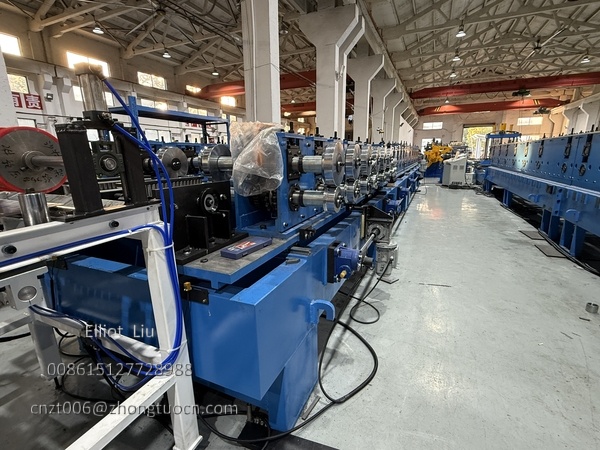

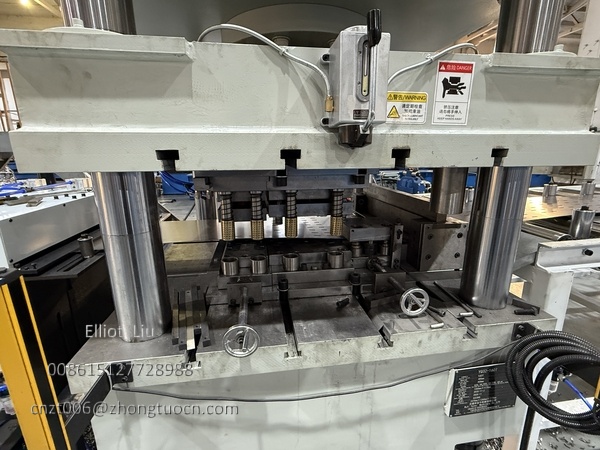

Decoiler - Servo Feeding Integrated Machine - Punching and Cutting - Conveying Platform - Forming - Servo Tracking Expansion - Discharge

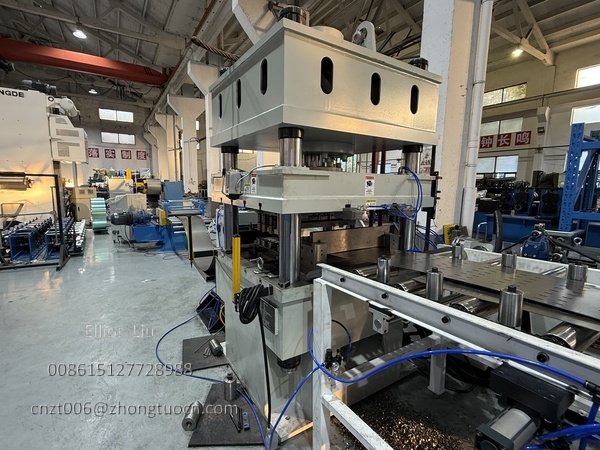

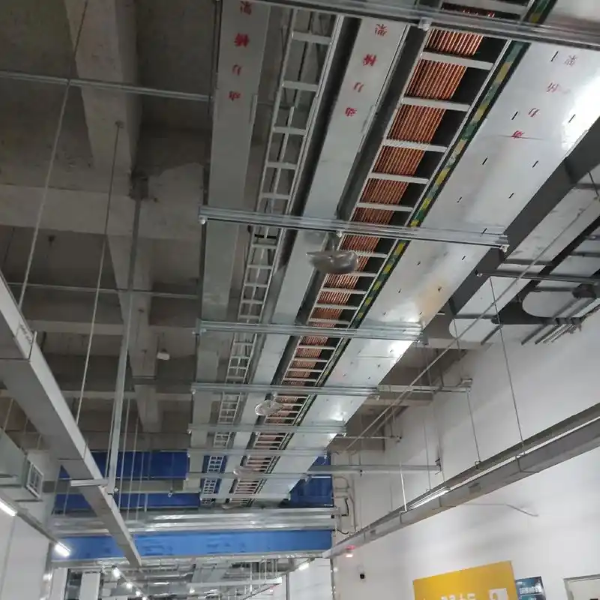

Cable tray application
Construction & Architecture
Commercial buildings, industrial plants
Energy & Power
Power stations, new energy facilities
Transport Infrastructure
Rail transit systems
Specialized Industries
Chemical engineering, defense sector, data centers
General Manufacturing
Light industry, textile manufacturing
The design and style of the cable tray
Our machines not only produce regular styles, but also offer customization for other designs. If you have any ideas, please feel free to contact us at any time.
