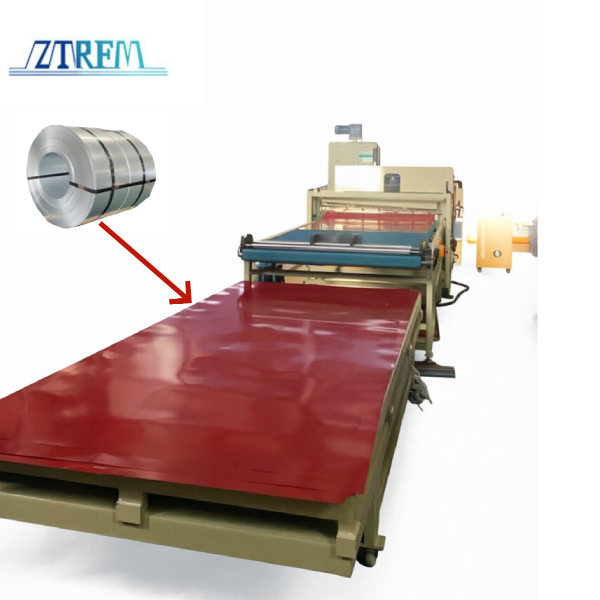

Customizable Layout Orientation And Color For Steel Coil Cut To Length Lines
You might purchase a steel coil cut to length line, only to discover upon delivery that the orientation is wrong. The coil loads from the left, but your overhead crane is on the right. Or perhaps the machine performs perfectly, but its color clashes completely with the rest of your workshop equipment, making things look unprofessional when clients visit. These minor issues are actually easy to resolve, yet many manufacturers simply do not ask. To better suit your needs, we customize the layout of every cut to length line to fit your factory perfectly and offer full flexibility in choosing your preferred color. Let me elaborate on these points, as well as the other customizable features we offer. This is not just a machine for cutting coils. It is a Steel Coil Cut To Length Line line that integrates seamlessly into your workshop.
Line Layout: You Call the Shots for Your Workshop

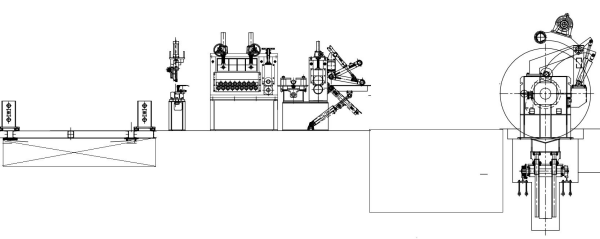

Many customers are not aware that they can actually customize the process flow direction of a cut to length line. Our standard configuration runs from right to left: uncoiler with coil car, threading unit, side guides, leveler with encoder for length control, hydraulic shear, and run-out table. However, if your factory layout requires a left-to-right flow, or if you position your overhead crane on the opposite side, we can easily mirror the layout.
Simply send us your workshop floor plan before placing an order, and our engineers will help determine the most efficient flow direction. You do not need to knock down walls or relocate cranes. The machine is ready for immediate installation upon arrival. This is particularly useful for customers renovating older workshops or working with limited space. When we supply steel coil cut to length lines, we are not just selling hardware. We are providing a solution that fits perfectly into your facility.

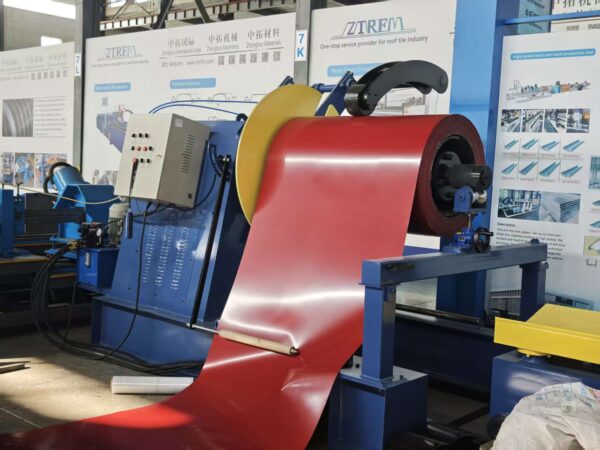

Machine Color: Matching Your Brand or Existing Equipment
Color might seem like a minor detail, but a workshop with a mix of yellow, blue, and gray machines looks cluttered.Some major clients even use equipment color uniformity as a scoring criterion during factory inspections. That’s why we offer color customization.
You can choose from our standard colors, or provide a specific color code for us to match it. We can even incorporate your company’s logo colors into the machine design.You decide the look of your steel coil cut to length line.
Beyond Layout and Color: Further Customization Options
You may require other adjustments as well. For instance, while our standard voltage is 380V/50Hz/3PH, we can accommodate the 415V or 460V standards in other regions. We can also customize the total line length, the maximum discharge length of the run-out table, and even the operating language.
In addition to steel coil cut to length lines, we manufacture upright pillar production lines, slitting lines, C/Z purlin roll forming machines, and more. If you need a complete production line for warehouse racking or structural steel, we can provide a comprehensive package. For now, however, let’s focus on this cut-to-length line.
How Do We Ensure Machine Durability And Reliability?

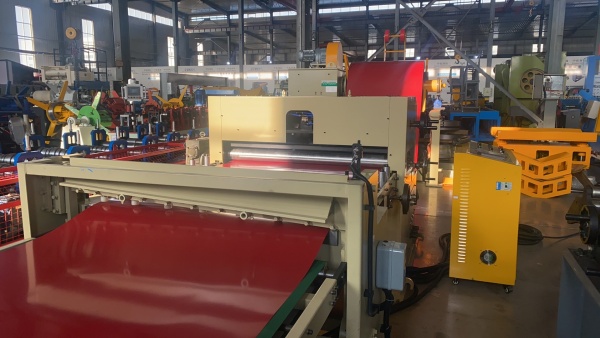

Customizing the layout and color is not enough. The machine itself must last a long time. We use GCr15 material for the leveling rollers across the entire line. After heat treatment, they achieve high hardness and excellent wear resistance. The hydraulic system operates at 6.3–16 MPa, utilizing valves from Beijing Huade. For controls, we use Siemens PLCs and Weinview touchscreens. Spare parts for these brands are available at any hardware store, so you never have to worry about components going out of stock.

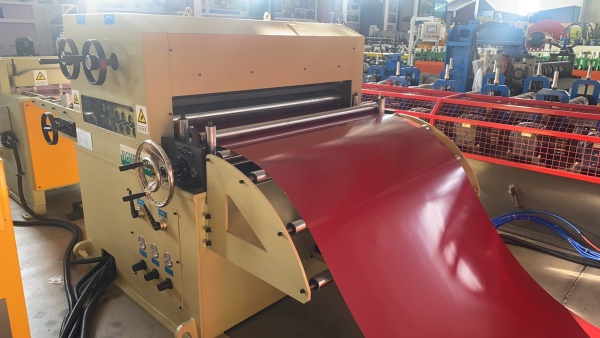

Additionally, the leveler features a four-high roller structure, ensuring perfectly flat sheets whether processing thick or thin material. In terms of cutting speed, it can output 4 to 5 sheets per minute for 4 meters lengths and 6 to 7 sheets for 2 meters lengths. This is a high speed performance for steel coil cut to length lines in this class, guaranteeing solid daily output over an 8 hour shift.
Specifications Table
| No | Name | Parameter |
| 1 | Materials | CR, GI |
| 2 | Thickness | 0.4-4 mm |
| 3 | Width | 500-1500 mm |
| 4 | Line speed | ≤25 m/min |
| 5 | Cutting speed | it can cut about 4-5 pieces for 4m per minute; it can cut about 6-7 pieces for 2m per minute |
| 6 | Diagonal tolerance | ≤±2mm |
| 7 | Length tolerance | ≤±1.5mm |
| 8 | Straighten precision | ±1.5mm |
| 9 | Power | 380V/50HZ/3PH |
| 10 | Area of the whole line | 18m(L)X7m(W) |
| 11 | The direction of whole line | Depends on Customers’ requirement |
| 12 | The color | Customized |
What Products Can It Make? Real World Applications
This cut to length line produces flat sheets that you can directly use to manufacture a wide range of finished products, such as:
Warehouse shelving panels and upright connectors
Stamped blanks for automotive parts
Straight panels for ventilation ducts
Enclosures for power distribution boxes and control cabinets
Base plates for photovoltaic mounting systems
If you need to convert steel coils into fixed size flat sheets, this machine gets the job done. If you currently outsource hundreds of tons of cut sheets monthly, purchasing your own cut to length line allows the savings on processing fees to pay for the machine within a year.
The Bottom Line Is This
We want to ensure that when you receive your cut to length line, everything is perfect, from the layout orientation and color scheme to the voltage compatibility. We handle these details for you upfront. You simply tell us your workshop layout, preferred color, and the type of sheets you need to cut—we’ll take care of the rest.
