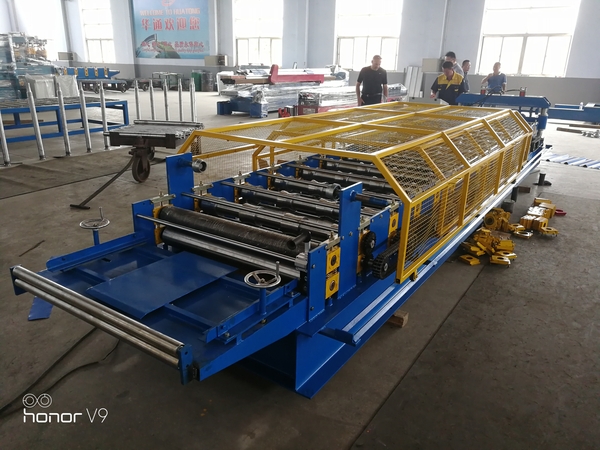

How Our High Speed Panel Forming Machine Takes the Headache Out of Daily Production

Picture this: It’s Monday morning. You have three rush orders for roofing panels, your old roll former keeps jamming on G550 steel, and the operator just yelled that the last batch came out with wavy edges. Sound familiar? I’ve talked to dozens of workshop owners who struggle with slow speeds, scratched coatings, and constant roller wear. That’s exactly why our factory spent years perfecting this high speed panel forming machine – not to win awards, but to make your life easier. We build it from the ground up, and we can customize it to fit your weirdest profile or tightest space. No middlemen, no generic boxes. Just a machine that works as hard as you do.

---

Product Advantages – What Makes This Machine Different

Let me skip the marketing fluff. Here’s what this high speed panel forming machine actually does better than the rest:

• Handles tough materials like a champ – GP, PGG, PPLG, G550 FULL HARD from 0.16mm to 0.55mm. No tearing, no edge cracks.


• Speed that respects your deadlines – 0–20 m/min variable. Run slow for precision profiles, then crank it up for long runs.

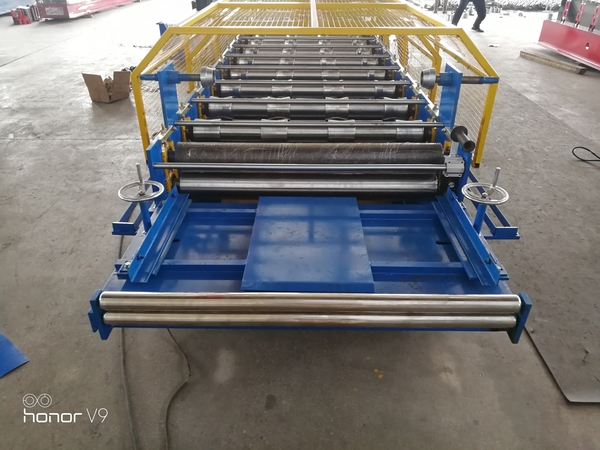

• Stainless steel feeding rollers – No rust, no scratches on pre-painted coils. Your customers will thank you.

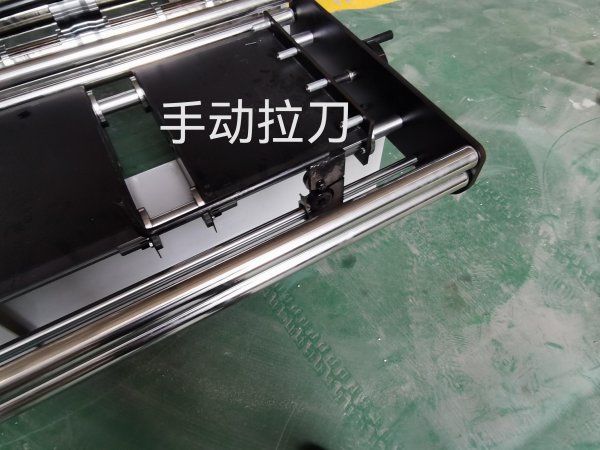

• Manual pre-shearing device – Change coils in five minutes without wasting a single meter of raw material.

• Double chain drive – Twice the strength of cheap single chains. Handles heavy loads without snapping.

• Wheel type width adjustment – Adjust from 1000mm down to whatever you need. Tool-free, easy.

And because we’re the manufacturer, we can customize the number of rollers, shaft diameters, frame length, and even the control system to match your local voltage or language.

---

Technical Parameters

Note: We can adjust voltage, roller count, and machine length to your order – just ask.

---

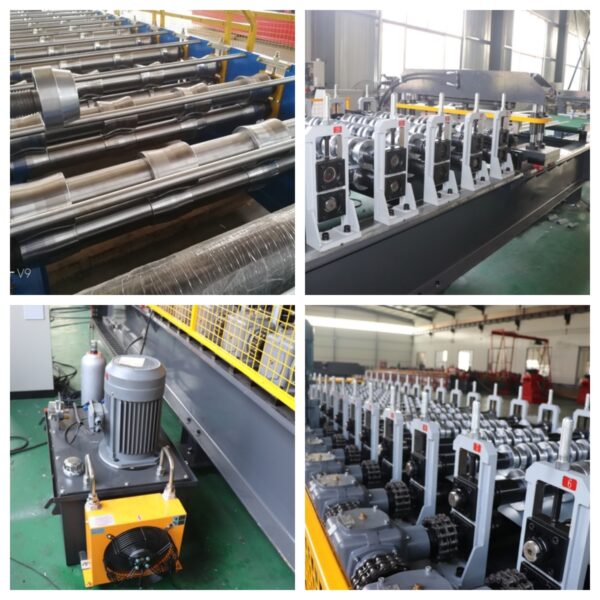

Components Advantages

1. Welded H‑beam frame – Not bolted, not flimsy. High tensile steel with precision welding gives the whole machine rock‑solid rigidity.

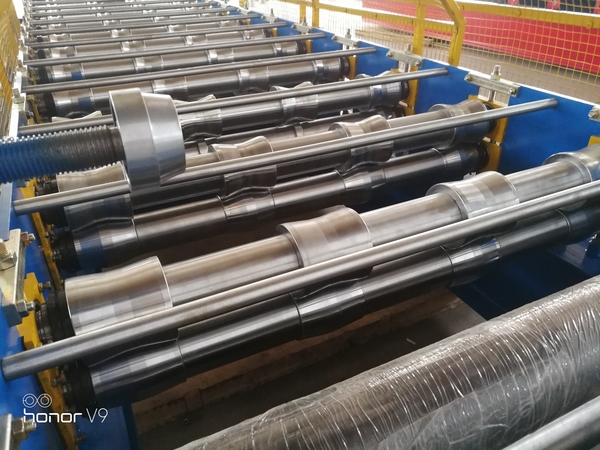

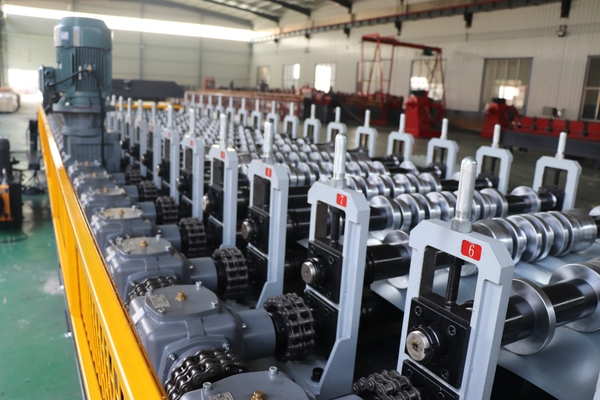

2. 20 gradual forming rollers (45# steel + hard chrome) – Instead of forcing the strip through 12 sharp bends, our rollers take small, gentle steps. This means no micro‑cracks in hard materials, no roller marks on soft coatings, and much longer roller life.

3. φ80 mm quenched shafts – Thick and heat‑treated. They won’t bend under heavy pressure, so your panels stay straight from first to last meter.

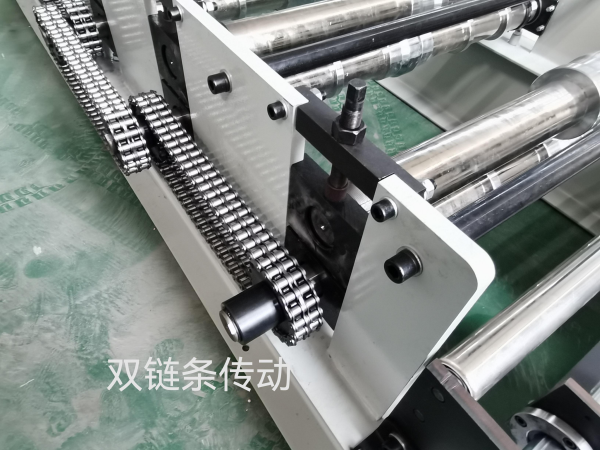

4. Double chain drive – Shared load means less wear. You’ll replace chains maybe once every three years instead of every season.

5. PLC control with Siemens transducer & Omron encoder – Accurate length measurement, automatic cutting, and a touch screen that speaks English, Chinese, or Spanish.

---

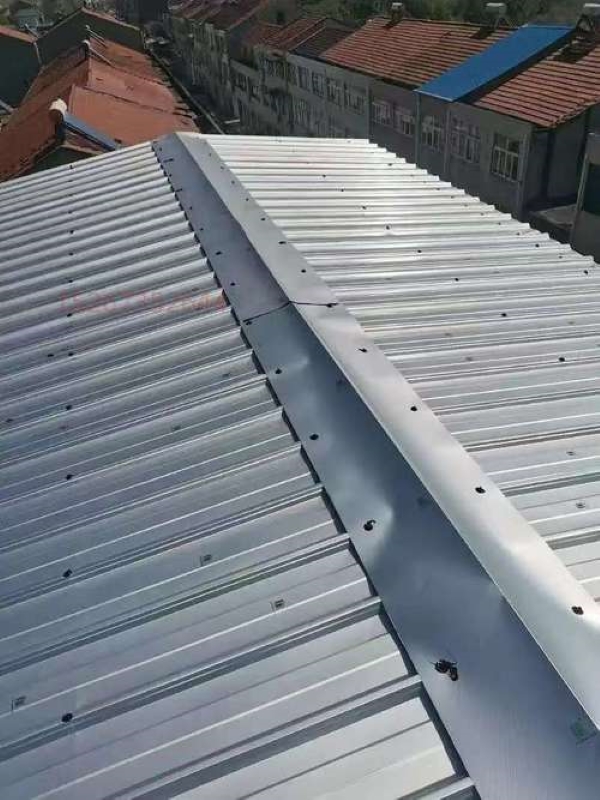

Product Profiles and Applications

This high speed panel forming machine produces consistent, smooth panels for:

• Roofing sheets – trapezoidal, corrugated, standing seam profiles

• Wall cladding – classic ribbed or modern flat panels

• Structural decking – for mezzanine floors and concrete formwork

• Solar mounting rails (with custom roller sets)

We don’t have your exact profile drawing yet – please send us your panel section, and we’ll confirm if the existing roller set works or if we need to make a custom one.

---

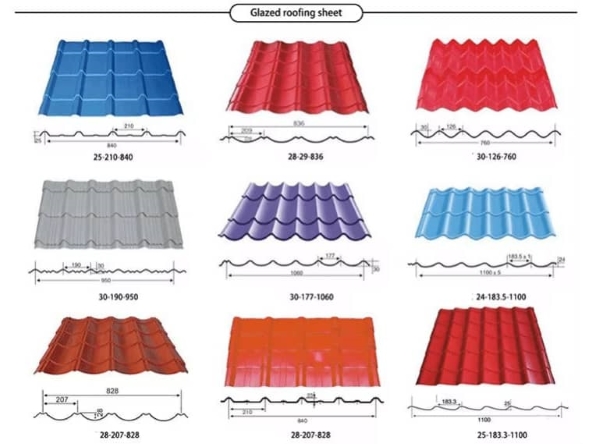

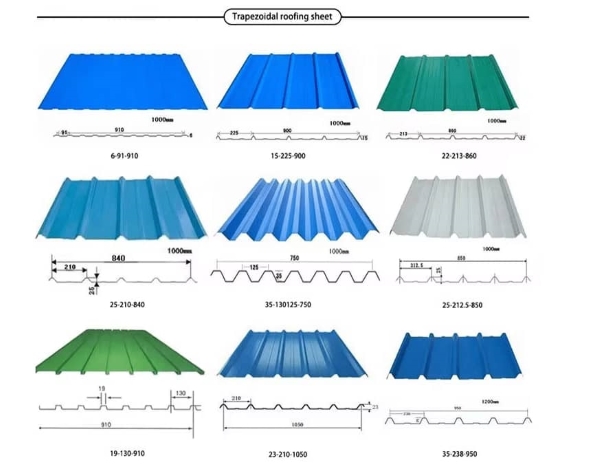

Roof Tile Profile Showcase

We have manufactured production machinery for our clients corresponding to a wide variety of templates—including those shown below—and possess a mature production system that enables us to handle both design and manufacturing for you. If you require a template not featured in the images, that is no problem either; we can create custom solutions based on your specific template drawings and requirements, as we operate our own factory.

---

Optional Add‑Ons to Boost Your Production Line

Let me tell you about two extras that turn a good machine into a productivity monster. Both are designed to work seamlessly with our high speed panel forming machine.

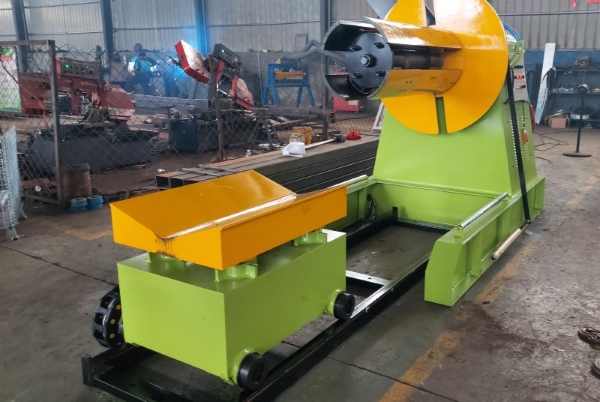

Automatic Hydraulic Decoiler (5‑ton capacity)

• Carries coils up to 1000mm wide, inner diameter 450–610mm

• Hydraulic segment expansion – opens and closes with a button

• Speed sensor – automatically matches the forming machine’s speed

• Electric + hydraulic motor drive (4.0kw each)

• Comes with an automatic loading cart – no crane, no second worker


What it means for you: One person can change coils in under two minutes. No back injuries, no waiting for a forklift.

6‑Meter Automatic Stacker

• Installed at the exit of the roll forming machine

• Workflow: sheet feeds → cutting finishes → product drops onto stacking area → stack reaches set height → press one button → stack moves sideways to packing area

• Maximum stack height: 300 mm

• Receiving table length: 6000 mm

• Main motor power: 2.2 kw



What it means for you: No more running to catch falling sheets. Neat stacks ready to wrap. Your operator can handle two machines at once.

These options are available as factory‑direct add‑ons. Contact us for compatibility with your existing line.

---

Let’s Find the Right Machine for Your Shop

Look, I know buying a roll former is a big decision. You want something that won’t break down in six months, that actually fits your space, and that doesn’t need a PhD to operate. Our high speed panel forming machine is built by people who work in shops – not by desk engineers. And because we’re the factory, we can customize everything from roller profiles to control voltage.
