High Precision Large Tonnage Hydraulic Coil Slitting Machine

Zhongtuo2019
Apr, Tue, 2026

Uncategorized

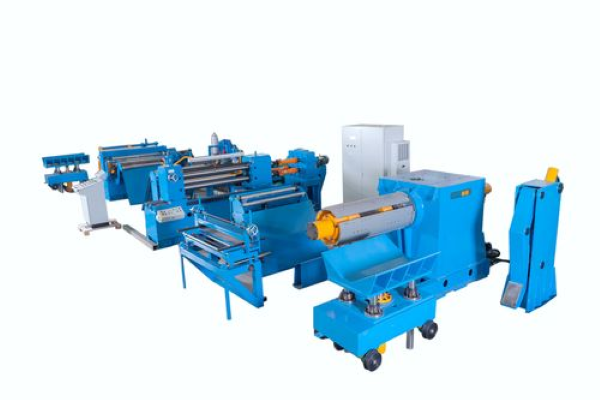

A full view of a blue Hydraulic Coil Slitting Machine production line against a white background, showing the decoiler, processing sections, and control panels arranged in sequence. — Hydraulic Coil Slitting Machine

As professional manufacturer, we build durable high-precision hydraulic slitting lines to match heavy-duty steel coil deep processing demands. This equipment perfectly fits CRS & GI steel coils, and delivers stable dimensional accuracy for building steel, sheet metal and hardware processing industries.

Raw steel coils applied in this line own tensile strength δb≤450Mpa，δs≤260Mpa. Maximum single coil weight reaches 15T, coil inner diameter Φ480–520mm, maximum outer diameter Φ1600mm. The line runs smoothly at 0–60m/min, matches 380V/60Hz/3Ph power grid, total matching power around 220Kw. Whole equipment covers 23m×8m area, and keeps stable daily output around 40 tons per working shift.

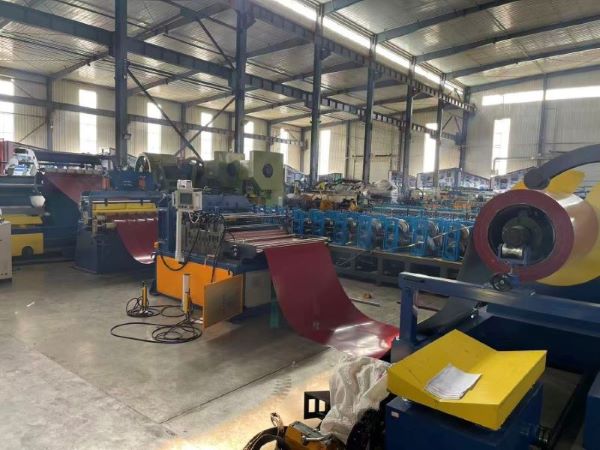

A wide shot of a factory floor showing a complete Hydraulic Coil Slitting Machine line, featuring a large red metal coil on a decoiler, feeding through rollers and slitting stations. — Hydraulic Coil Slitting Machine – Overall View

Smooth Continuous Slitting Working Procedure

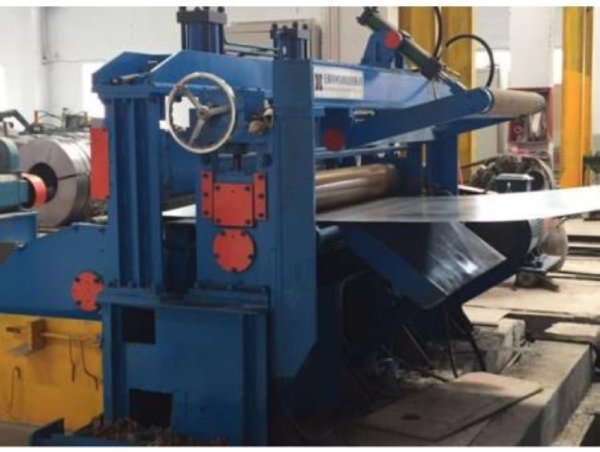

From right to left are: Entry coil car→Decoiler →Press and pinch device→Hydraulic cutter→Looper 1→Side guide device→ Slitter→Scrap winder→Looper 2→Tension stand →Recoielr→Exit coil car

Coil Specification & Tooling Precision Parameters

Parameter Item	Accurate Original Factory Data
Steel coil inner diameter	Φ480–520 mm
Maximum steel coil outer diameter	Φ1600mm
Maximum single coil loading weight	15T
Slitting knife shaft diameter & material	Φ220mm, 40Cr alloy steel
Slitting blade size & material	Φ220×Φ340×15mm, H13K wear-resistant steel
Finished strip width dimensional tolerance	≤±0.05mm

Host Power & Auxiliary System Performance

Mechanical Part	Standard Working Parameter
Main slitting driving motor	75KW AC variable frequency motor
Scrap edge winding motor	4KW independent driving motor
Whole line control mode	PLC intelligent centralized linkage control
Required on-site operators	1 professional technician + 2 ordinary workers

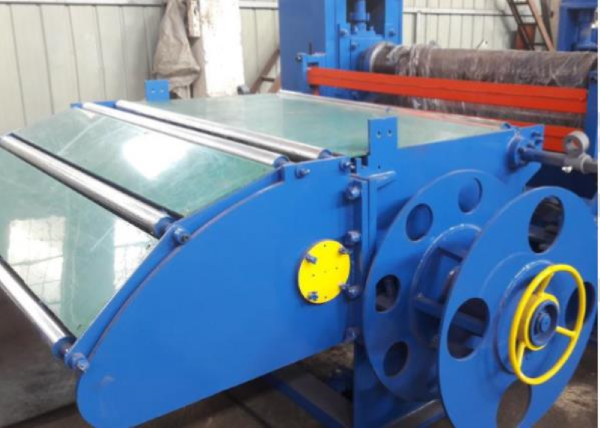

Close-up view of the Scrap Winder section of a Hydraulic Coil Slitting Machine, featuring a blue frame, silver guide rollers, and a large yellow handwheel for manual adjustment. — Hydraulic Coil Slitting Machine – Scrap Winder Detail

H13K high-hardness slitting blades and 40Cr high-rigidity knife shafts bring extremely strong wear resistance and long service life. We support flexible slitting quantity: 5 splits for 3–3.5mm thick steel, up to 25 splits for 0.3mm thin steel sheets. Independent hydraulic supply system provides steady pressure for unwinding, shearing and clamping actions during long-time continuous production.

Intelligent electrical control system realizes full synchronous linkage of each section. Simple human-machine operation interface greatly reduces professional requirements for frontline operators, and improves overall production efficiency obviously.
