Stable Unwinding Hydraulic Decoiler For Metal Raw Material
We have rich experience in developing and producing coil unwinding machines. This hydraulic de coiler is well optimized for daily industrial use, with moderate floor space, standard 380V voltage and independent power setting. It adapts to multiple plate thickness and different coil sizes, ideal for mass and repeated metal processing work.
The internal hydraulic and electric parts are reasonably arranged, ensuring constant unwinding speed all day long. The machine runs with low noise and stable current, not easy to have sudden failure in continuous production.
Material matching performance
This device fits most common industrial metal coils on the market:
- Cold rolled steel sheet
- Galvanized anti-corrosion plate
- Color coated decorative steel plate

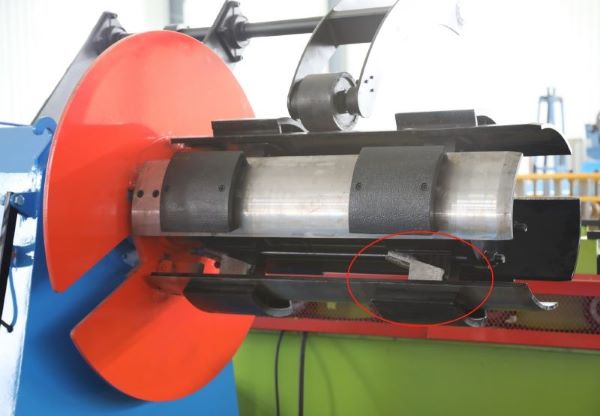

The soft contact tensioning design can well protect the plate surface and coating, keeping finished materials in good condition.
The whole machine uses reinforced bearing structure, which can steadily bear 5 to 7 tons heavy coil pressure. Hydraulic automatic expansion replaces traditional manual clamping, which obviously improves working efficiency and reduces labor burden.
Complete Performance Parameter List
| Specification | Data |
| Working Floor Area | 3.4m length 1.6m width 1.8m height |
| Main Motor Power | 4kW |
| Hydraulic System Power | 3kW |
| Industrial Working Voltage | 380V |
| Max Feeding Coverage Width | 1250mm |
| Applicable Raw Material | Cold rolled steel galvanized sheet color coated plate |
| Support Coil Inner Diameter | 470-530mm,570-630mm. |
| Max Bearing Capacity | 7 tons |
Production line matching advantage
Hydraulic de coiler supports multi-direction feeding installation, and can be freely combined with shearing, stamping, forming and other processes. No complex transformation is needed, and it can be put into use quickly after on-site installation.
- Frequency conversion speed regulation, unwinding speed can be adjusted freely according to production progress
- Removable gaskets help users quickly switch different coil inner diameter
- Independent hydraulic power unit, stable output and long service life
Whether you run a small processing workshop or a large-scale production factory, this hydraulic de coiler can meet your daily unwinding demands. The overall cost performance is high, and the later operation and maintenance cost is low.
We understand the real needs of front-line production, so every detail of this hydraulic de coiler is polished for durability and convenience. With stable overall performance and strong universal adaptability, it becomes a cost-effective auxiliary equipment for metal processing enterprises and creates stable value for long-term production.
