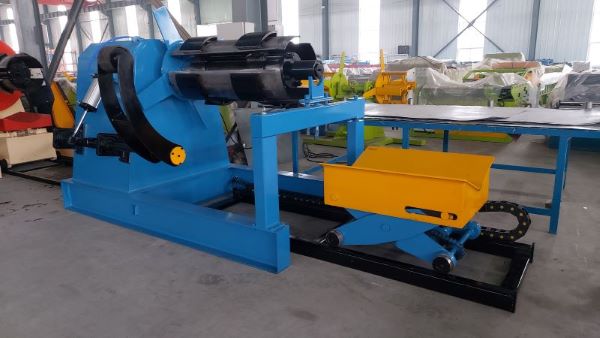

7 Ton Heavy Duty Hydraulic Decoiler for Steel Coils
Designed for precision and durability, the Hydraulic Decoiler is a robust solution for processing steel coils ranging from 5 to 7 tons. With a main motor power of 4kW and a hydraulic station output of 4kW (380V), this machine ensures stable operation for coil widths between 0-1250mm. The unit features a heavy-duty frame constructed with 300H steel and 16mm thick welded steel plates, ensuring vibration-free performance even under maximum load.
The decoiler is equipped with an advanced slider-type tensioning system and a four-support-axes main shaft made from high-strength thick-walled seamless steel tubes (203*55mm). This design guarantees a perfect circular expansion, preventing damage to the coil's inner wall.
Key Technical Specifications
| Parameter | Specification |
| Coil Capacity | 5 Ton / 6 Ton / 7 Ton |
| Coil Inner Diameter | 470-530mm / 570-630mm (±20mm) |
| Main Shaft Diameter | 203mm (Seamless Steel Tube) |
| Hydraulic System | 3 Solenoid Valve Pump Station (4kW) |
| Loading Cart | 5-Guide-Column Hydraulic Cart |
| Control System | Delta Inverter (5.5kW) + Schneider Components |
uperior Structural Design
Robust Frame: The machine base utilizes 300H steel, and the body is welded from 16mm thick steel plates, providing exceptional stability and load-bearing capacity.
Heavy-Duty Loading Cart: Unlike standard 4-column carts, this unit features a 5-guide-column hydraulic cart. This unique design distributes force more evenly, preventing jamming or tilting when lifting heavy 7-ton coils.
Versatile Shaft Expansion: The main shaft uses removable gaskets, allowing the inner diameter range to be flexibly adjusted between 470-610mm without replacing the main shaft, meeting diverse production needs.
