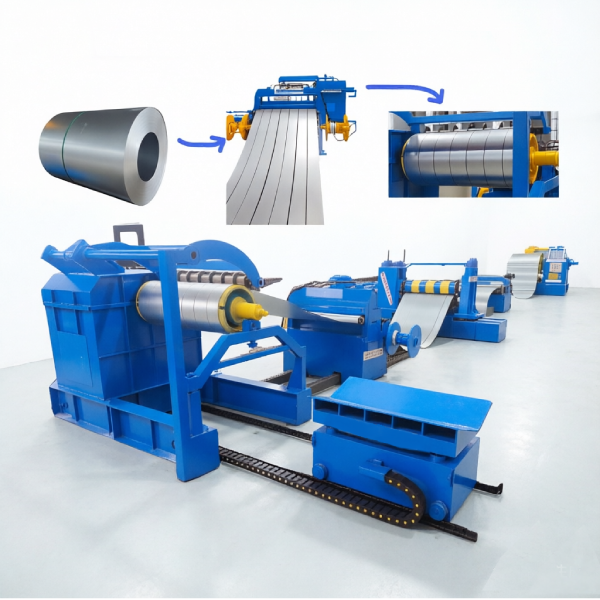

Hydraulic Slitting Line For Metal Coil Processing
We are a professional manufacturer focused entirely on metal coil processing machinery. Hydraulic Slitting Line is one of our core mainstream equipment, specially designed for coil slitting and automatic rewinding. We have mature production technology, complete processing workshop and strict quality inspection process, to ensure every set of equipment delivered with stable performance and long service life.
This machine fits most standard factory workshops perfectly, no need for large-scale site reconstruction. It adopts universal industrial power supply, stable power output supports long-time high-load continuous operation. Operators can adjust running speed freely according to material thickness and production schedule, to balance cutting quality and working efficiency.
Spec Data
| Item | Data |
| Floor Occupied Area | 23m × 8m |
| Running Line Speed | 0-60m/min |
| Processed Plate Thickness | 0.3mm-3.5mm |
| Working Voltage | 380V 3Phase |
| Total Installed Power | About 220Kw |
| Max Loading Coil Weight | 15T |
| Slitting Width Precision | ≤ ±0.05mm |
Applicable Raw Materials
This slitting line is designed to process cold rolled steel (CRS) and galvanized steel (GI) coils.
It meets the tensile strength requirements of δb≤450Mpa and δs≤260Mpa, suitable for common carbon steel coils slitting and preparation for subsequent processes.
After slitting, all narrow strips will be automatically recoiled neatly and tightly. The finished coils are easy to store, transport and conduct secondary deep processing. No surface scratch, no edge deformation, greatly improving raw material utilization rate.
Industry Application Scope
This slitting line is widely used for slitting carbon steel coils to prepare blanks for the next process. It is a practical choice for factories engaged in processing ordinary carbon steel and galvanized steel strips.
The whole machine adopts high-quality raw materials and strict heat treatment for key parts. The slitter blade is made of H13K material, with specification Φ340×Φ220×15mm. The knife pivot is made of 40Cr steel, with diameter Φ220mm. Even under long-time non-stop working, it will not deform or collapse the cutting edge easily.
Operation And Control Features
PLC centralized control system makes operation simple and intuitive. New workers can quickly learn to set speed, length and production quantity. The main operation table supports high/low speed adjustment and manual feeding, convenient for formal production, equipment debugging and abnormal material handling.
Daily maintenance layout is very reasonable. Hydraulic pipeline and electric circuit are arranged in order, easy for daily inspection and vulnerable parts replacement. Standard accessories are universal, customers can buy replacement parts locally at low cost.
We always adhere to making practical, durable and high-precision slitting equipment for global clients. Every production link is strictly controlled from welding, assembly to factory debugging. This hydraulic slitting line balances efficiency, precision and stability perfectly. It will be your reliable long-term partner for expanding metal coil slitting business. We also provide pre-sales technical communication, personalized configuration suggestion and one-stop after-sales service.
