Interchange Cz Purlin Machine For Quick Profile Size Adjustment
We are a professional manufacturer focusing on construction steel profile roll forming equipment. We have mature production workshop complete processing capacity and strict quality inspection standard. Our interchange CZ purlin machine integrates C type and Z type purlin production in one single line helping customers save equipment investment and workshop space greatly.
This model adopts integrated overall layout with reasonable floor occupation suitable for medium and large steel structure processing factories. It matches standard industrial power configuration stable power output can support long time continuous full load running without frequent shutdown.
Basic Performance Parameter
| Item | Data |
| Machine Dimension | About 22m × 2.0m × 2.0m |
| Working Speed | 0-32 m/min without punching 0-18 m/min with punching |
| Material Thickness | 1.0-3.0mm |
| Working Voltage | 380V 50Hz 3Phase |
| Main Motor Power | 30kw servo motor |
The above core parameters fully meet the conventional production demand of construction purlin. It can adapt to multiple conventional raw steel materials in the market and match different specification requirements of C and Z purlins.
Compatible Production Profile Range
- C purlin width 80-300mm flange 30-100mm lip 10-20mm
- Z purlin width 120-300mm flange 30-100mm lip 10-20mm
- Applicable raw material cold rolled coil,hotrolled coil and galvanized coil

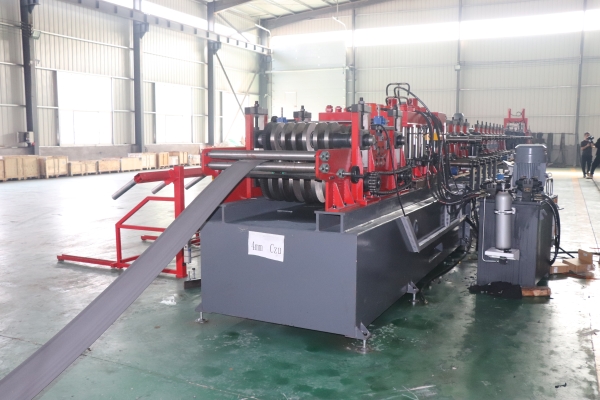

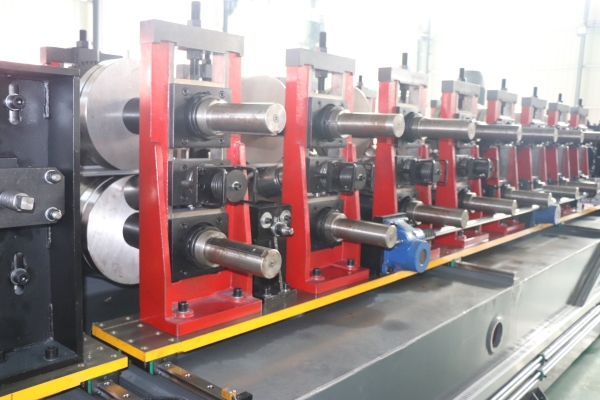

Quick specification replacement is one of the biggest highlights of this machine.It supports touch screen automatic width and height adjustment no need to disassemble extra parts. The last part of roller stations can be overturned manually to switch C and Z production mode efficiently.

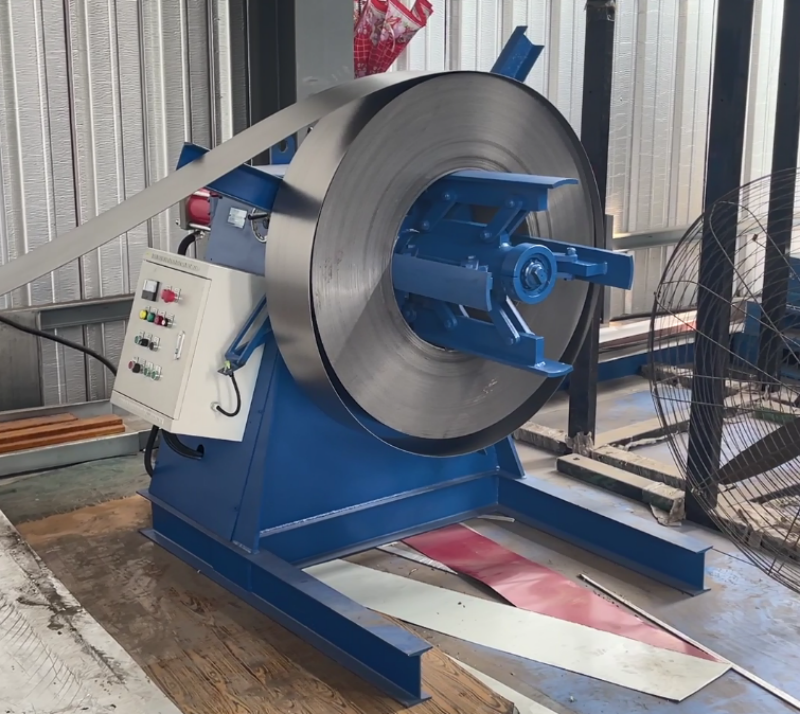

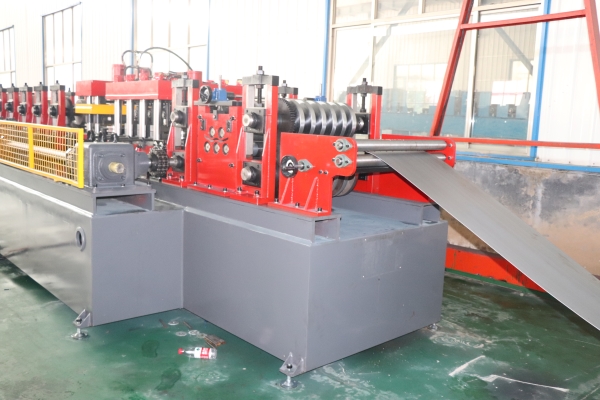

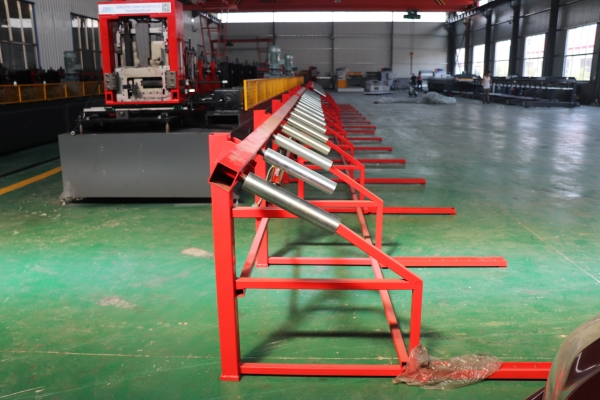

The whole production process runs automatically from coil unloading feeding leveling punching forming cutting to finished product stacking. The whole line needs only a small number of workers to monitor operation reducing long term labor cost obviously.
Operation Control Feature
The system is equipped with PLC touch screen supporting Chinese and English switching. It reserves USB data input function one key to import production parameters convenient for order switching and batch production arrangement.
Daily maintenance design is humanized internal circuit and mechanical layout neat and regular.
Choosing our interchange cz purlin machine you get one machine with dual production capacity stable operation and simple daily maintenance. As a real professional manufacturer we provide whole process scheme design installation guidance and long term technical after sales service making your production investment more secure and valuable.
