Metal Roof Roll Forming Machine For High Precision Production
Nowadays, more and more builders choose metal roof panels for construction use. Yet many factory owners struggle with uneven finished shapes, easy surface scratches and frequent equipment faults during production. Picking a proper forming machine becomes quite critical for stable daily output. Let’s learn how to select ideal equipment and know more details about our practical model.
How do I choose a reliable metal roof roll forming machine?
First of all, you need to confirm your actual production demands including panel types, material thickness and running speed. Meanwhile check core part quality such as forming rollers, and also pay attention to supplier warranty and technical training services.
Below, I will introduce our metal roof roll forming machine to you, covering aspects such as the material thickness and production speed the machine can handle, the material composition of the rollers, the machine’s key advantages, and our after-sales support guarantees.
Core Technical Specifications
| Item | Details |
|---|---|
| Material Thickness | 0.16-0.55mm |
| Raw Material Width | 1000mm |
| Effective Width | 812mm |
| Processing Speed | 0-20m per minute |
| Length Tolerance | 3m ±1.0mm |
| Processing Material | GI / PPGI / PPGL / G550 FULL HARD |
| Working Space | 20m(L)× 2.5m(W) × 1.2m(H) |
| Main Part Length | About 1150×1500×1500mm |
| Main Part Weight | 6.5 tons |
| Voltage | 380V 50Hz 3Phase or as required |
| Main Motor Power | 7.5kw |
| Hydraulic Power | 5.5kw |
| Roller Quantity | 20 rollers (gradually forming type) |
| Blade Material | Cr12 quenched |
In short, this table covers all core running data and component specs. You can clearly learn about the machine’s working range and overall configuration from these figures.
Product Advantages
We designed this machine with durability, precision, and ease of maintenance in mind.We fine tune every part to help you achieve smoother production and cut operational costs.

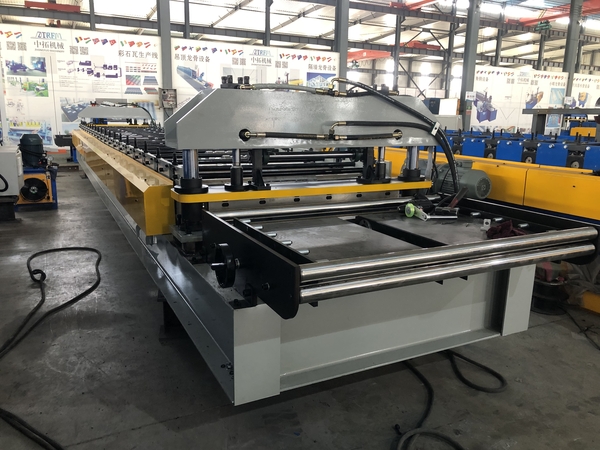

- Stainless steel feeding rollers guarantee whole line no rust and do not hurt raw material painting

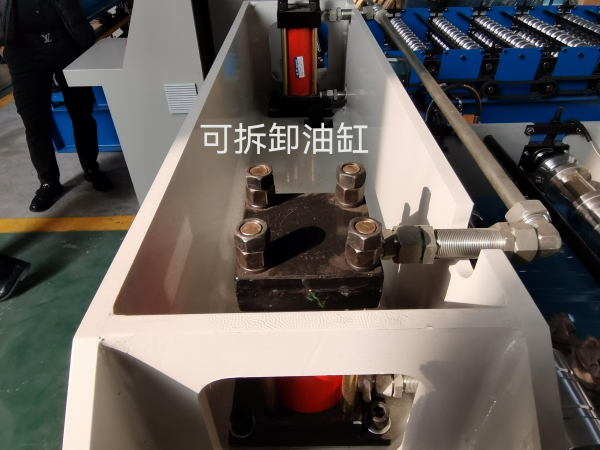

- Our oil cylinder adopt bolts connect type but not welding type, this is easy fix if there are problem, welding type can not fix after problem

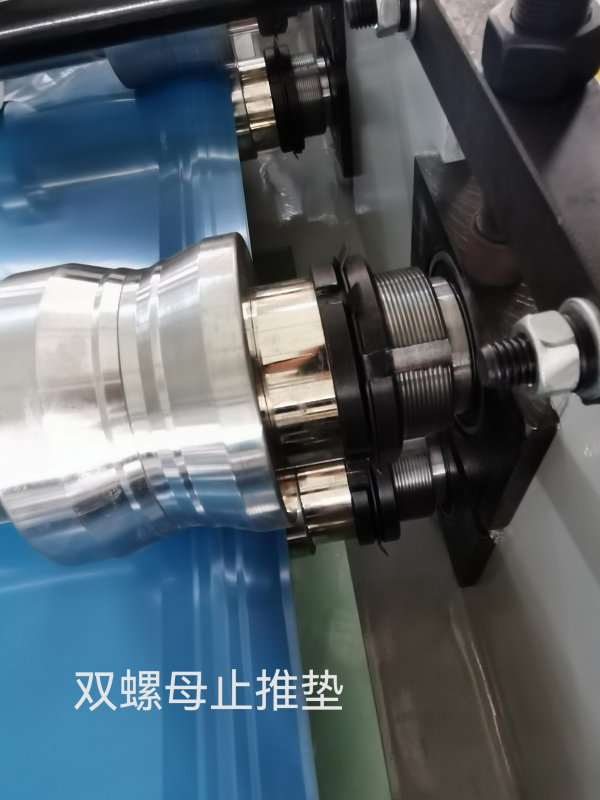

- Double bolts with spring locking, this can let the rollers more stable and do not change position when do the roll forming and then the final products can be straight

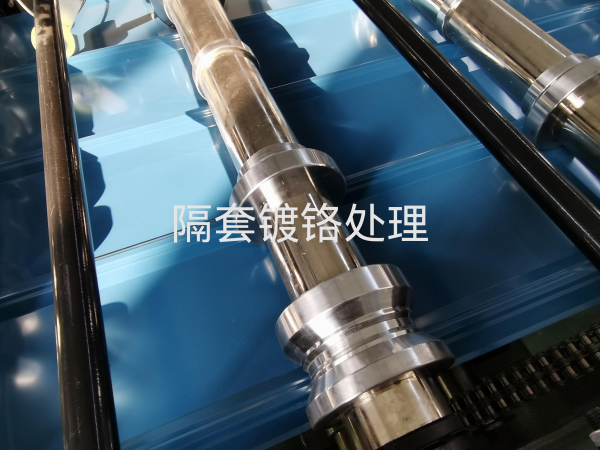

- Rollers spacers adopt zinc treatment but not color paint, this can use whole life without rust and of adopt paint after color drop on the sheet will damage the paint

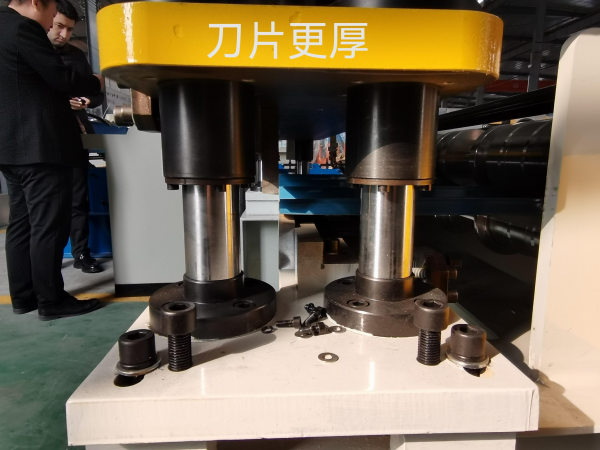

- Blade is more thick than normal blade
After-Sales Support
Honestly speaking, product sale is just the start of our long-term cooperation. We always stand by customers and offer full support after machine delivery.
We are committed to supporting you long after your machine is delivered, including:
Finished Product Showcase & Applications

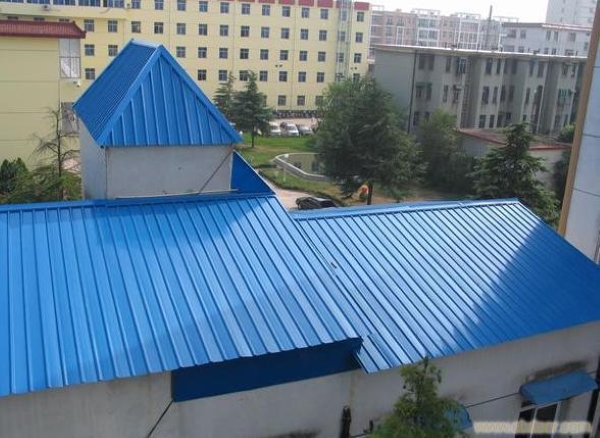

This machine produces metal roof profiles with consistent dimensions, smooth surfaces, and high structural strength, making them ideal for a wide range of applications:
If you hope to own reliable production equipment and cut unnecessary production losses, this machine will be your nice option. Once you have any questions or personalized production plans to discuss, feel free to get in touch with us right away.
