Perforated Cable Tray Forming Machine for 50-600mm Variable Width
If you run a cable tray manufacturing shop, you know the pain. Different projects ask for different widths. You either keep a warehouse full of fixed-size trays or stop production to change lines. Both cost you money.
We built this perforated cable tray forming machine to solve that problem for you. It handles widths from 50 mm up to 600 mm. Heights from 50 to 100 mm. One machine, many sizes. You can finally say yes to more orders without adding more machines. Let me walk you through what you get.
What are the common types of cable trays?
Cable trays are rigid, open structures used to route and support electrical cables in industrial, commercial, and data center environments. The most common types are classified by their physical design, each tailored to specific weight capacities, cable types, and heat management requirements.
Common Materials Used
Cable trays are manufactured in various materials depending on the installation environment:
Technical Parameter Table
| Parameter | Value |
|---|---|
| Machine floor space | 35 × 2.0 × 2.0 (L×H×W) meters |
| Strip width range | 150 to 850 mm |
| Strip thickness range | 0.5(±0.03) to 2.0(±0.03) mm |
| Product bottom width | 50 to 600 mm |
| Product height | 50 to 100 mm |
| Product length | 2000 to 6000 mm |
| Online punching & forming speed | 6 to 12 m/min (depends on length & hole quantity) |
Value for You
Now let me talk directly to you, the owner or manager of a tray making shop.
You reduce inventory costs No more stacking fixed‑size trays that might not sell fast. You make exactly what your customer orders, when they order it. Your money stays in the bank, not on the shelf.
You deliver faster An urgent order for 500 meters of 400mm wide trays? You can run it tomorrow morning. No waiting for a specific production slot.
You lower your labor cost per meter One operator runs the whole line. The automatic punch and cut mean no extra hands for secondary steps. Your team works smarter.
You avoid customer complaints about bad fit Trays come out with accurate tolerances. Your customers stop calling you about holes that do not line up or trays that are twisted. They just install and pay.
You become the supplier who offers everything When a contractor needs 150mm, 300mm, and 550mm trays on the same job, you can produce all three. They will remember that.

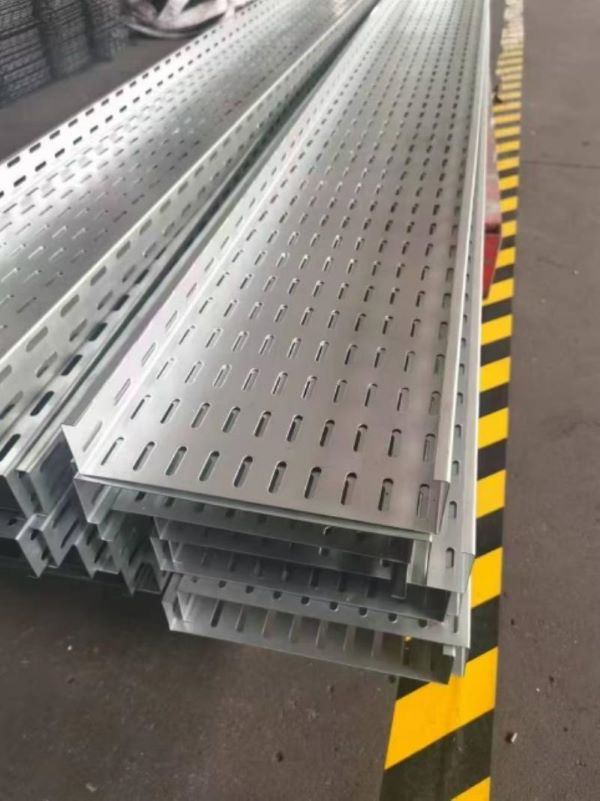

Finished Product Showcase & Applications
The following are the application scenarios for cable trays.
Commercial high‑rises – Data and power cables inside walls and above ceilings. Solar power plants – Outdoor trays that handle sun and rain. Industrial factories – Heavy cables for big machines. Data centers – Neat cable management with good airflow. Hospitals – Reliable power and network lines that cannot fail.
Your finished trays are straight, clean, and ready to install. You can offer them in galvanized steel, pre‑coated.
Frequently Asked Questions
Q: What is your warranty on this machine?
A: The whole machine comes with one full year warranty. If any part fails under normal use within that year, we cover it.
Q: How long does it take to deliver and install?
A: Delivery time depends on your location and current order queue. Typically 30 to 60 days after deposit. Our team can help with installation guidance remotely or on site. Please ask us for a confirmed schedule.
Q: Do you provide training for my operators?
A: Yes. We send detailed manuals and operation videos. If needed, we can arrange video calls to walk your team through the first run. On site training is also available at extra cost.
Q: Can you customize the machine for my special tray profile?
A: Yes, we can. Tell us your profile drawing. We will tell you if it is possible and what extra cost or lead time applies.
Contact Information
Ready to get a price or see a running video? Just reach out.
