Pipe Joint Anchor Rod Forming Machine Core Success Factor Is Cold Bending Roll Forming Technology

Have you ever wondered how an ordinary steel strip turns into straight and sturdy anchor rod tubes? The answer lies in the core process of roll forming. Our split set Pipe Joint Anchor Rod Forming Machine is based on this mature and stable roll forming machine, combined with end plate stamping, tube end shrinking, ring making and assembly welding, to help you directly obtain finished anchor rods from the steel coil. Today, we will first introduce you to the most crucial step - the principle of roll forming, to see how it ensures the accuracy and efficiency of each tube body. After reading, you will understand why so many mining and tunnel engineering customers around the world choose our equipment to reduce production costs and shorten downtime.

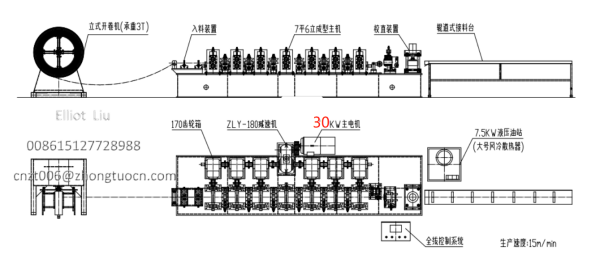

The Basic Process Of Roll Forming: From Flat Steel Strip To Round Pipe

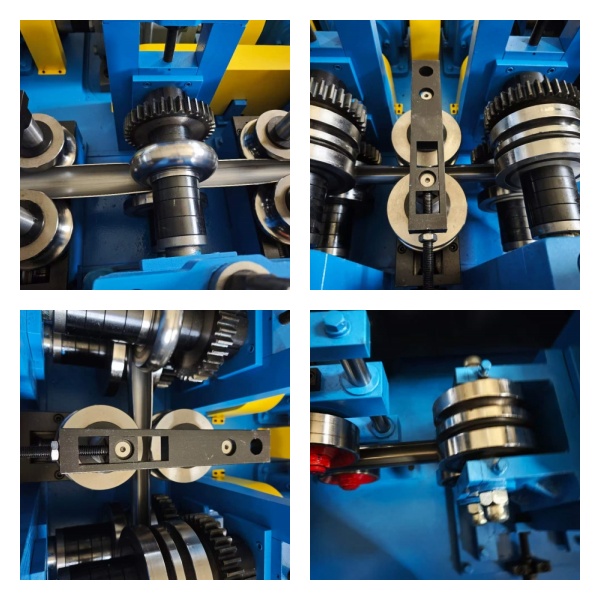

Roll forming is a continuous cold bending process. A manual unwinding machine feeds the steel strip into the rollers, and then it passes through multiple forming rollers successively. Each set of rollers gradually bends the steel strip by an angle. After going through several processes, the straight steel strip becomes an open-ended round pipe. If necessary, we can weld it, or it can directly become the finished anchor rod pipe body. Our equipment specifications:

Forming speed: 0-15 meters per minute (can be adjusted according to the material and specifications)

Applicable material thickness: 2.5 – 3.5 mm

Applicable tube outer diameters: 39mm or 46mm This continuous and stable production method eliminates the dimensional fluctuations caused by traditional stamping or bending, ensuring highly consistent outer diameters and roundness for each batch of pipe bodies.

Why Is Roll Forming More Suitable For Making Anchor Rods Than Ordinary Stamping?

Many customers have asked: "Why not use a simple bending machine to make the tubes?"

The answer is simple: efficiency and consistency.

In one sentence: Roll forming makes your anchor rod tubes more cost-effective and of higher quality. Moreover, we use a gearbox transmission, which is more stable and has lower noise than chain transmission. It is also less likely to experience tooth skipping during long-term heavy-duty operation.

How Do The Five Production Lines Work Together? - Not Just Making Tubes

Although this article focuses on roll forming, you need to know: A complete Split Set Pipe Joint Anchor Rod Forming Machine produces more than just a single tube.

Our anchor rod forming production line consists of five independent devices:

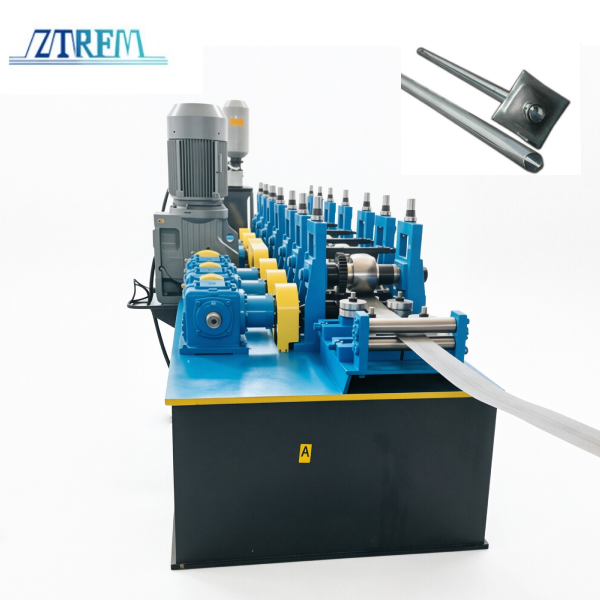

Split set roll forming machine - Produces pipe bodies

Split Set Dome Plate Press Machine - Stamps the dome plates

Split set necking machine - For pipe end necking, facilitating the installation of end plates

Split set ring making machine – Producing fixed rings

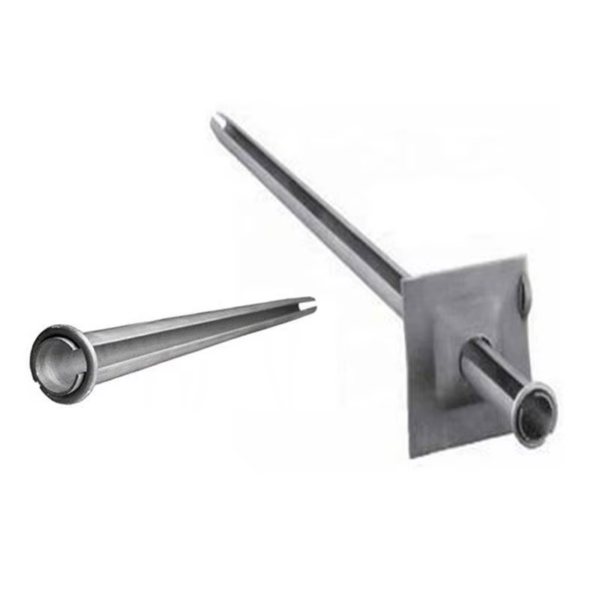

Split Set Ring Welding Machine - Welds the pipe body, end plates, and rings together to form the final product.



You can choose to purchase only one of them based on your order requirements, or you can buy all five at once. They operate independently and do not interfere with each other. If you need to repair one of them, the other four will still be able to produce normally. A malfunction in just one part will not halt the entire production process.

Technical Parameters

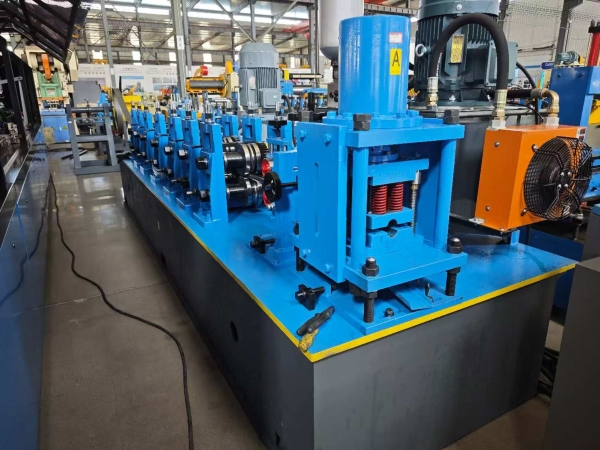

Split set roll forming machine

Split set dome plate press machine

Split set necking machine

Split set ring making machine

Split set ring welding machine

What Practical Problems Can This Split Set Roll Forming Machine Help You Solve?

We don't merely sell machines; we aim to address the real problems in your production process. Here are some issues that our customers frequently encounter:

Order size changes rapidly → The forming speed can be adjusted, allowing for small batches without wasting electricity or molds.

The operational skills of the workers vary → The PLC computer controls the process with a multi-language interface, allowing you to save recipes.. When changing product specifications, it can be called up with just one click.

Worried about the machine breaking down and causing production halts → Five production lines operate independently.. Moreover, the gearbox transmission ratio is much more durable than the chain.

Different output voltage or frequency → We can customize 380V/60Hz or other voltages. The packaging is rust-proof and suitable for sea transportation.

Not sure about the return on investment? You can start by purchasing the forming line and welding line. Use purchased pipe bodies and end plates to assemble the finished product. This will have the lowest cost. Add the rolling line after you have an order.
