Purlin Palletizer Machine for Light Steel Keel Production
When you choose our high efficiency purline stacking machine, you will get not only stable equipment quality and reasonable workshop layout matching, but also complete pre-sales and after-sales technical support. We always take your actual production demand as the core, and tailor suitable automatic packing solutions for every light steel keel processing enterprise.
The light steel structure and prefabricated building industries are experiencing rapid growth. Consequently, an increasing number of manufacturers require efficient, standardized methods for processing light steel studs and purlins. However, this rise in production volume brings with it a host of challenges—including high labor costs, inconsistent packaging quality, and the difficulty of keeping pace with continuous production lines.

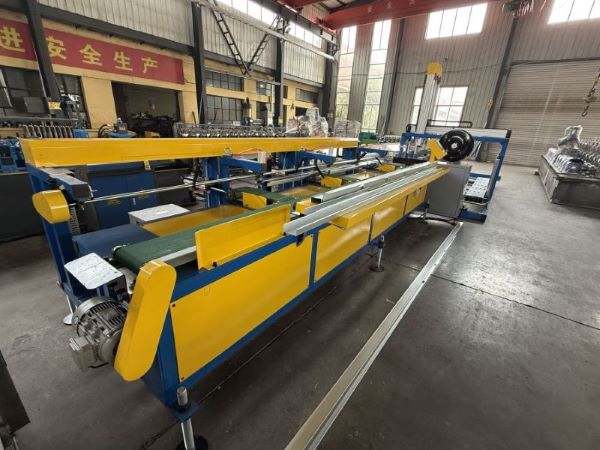

The purlin palletizer machine is the ideal solution for addressing these very issues. It automatically aligns and neatly stacks finished profiles directly from the forming line, securing them with strapping bands into ready-to-ship bundles.
Allow me to demonstrate how this machine can seamlessly integrate into your workshop, making your operations significantly easier and more efficient.
What is a palletizer machine and how does it work?
A palletizer machine automatically stacks products onto a bundle or pallet. In our case, it handles light steel keels. Here is the step‑by‑step process:
Feeding section ⇒Clamping section ⇒Stacked segments⇒Packaging section⇒ Pulling section⇒Stacking section
All of this runs under a central control system. All adopt 5 sets of servo VEICHI systems, including buckle, lifting and stacking, tape winding, pulling, stacking trans lation, and stacking lifting. high-speed app lications are more stab le than stepper and cylinder app lications.
Product Advantages
Based on real workshop needs, here is what this purlin palletizer machine brings you:
-
Fully automatic process – From profile feeding to final strapping. You reduce labor dependency significantly.
-
Adapts to your production changes – Works with conventional keel profile lengths. You can freely change the bundle quantity per batch according to your orders.
-
Very easy for your workers – The control system stores multiple product formulas. Switching between different keel specs takes just one key press. No repeated parameter setting.
-
Simple daily maintenance – Internal layout is clean and standard.
Technical Specifications
| Item | Data |
|---|---|
| Overall Floor Area | 9.0m × 2.5m |
| Max Running Speed | 70m/min for 3m profile |
| Applicable Profile Thickness | Conventional light keel sheet thickness |
| Working Voltage | 380V 50Hz 3Phase |
| Matched Total Power | Standard supporting power configuration |
| Bundle Quantity (example) | 24 pieces per bundle (4×3×2) – fully adjustable |
| Control Interface Languages | English and Chinese |
Key Components and the Value They Bring to You
1. Component design that lasts
We built this machine with durability in mind. Here are the main parts:

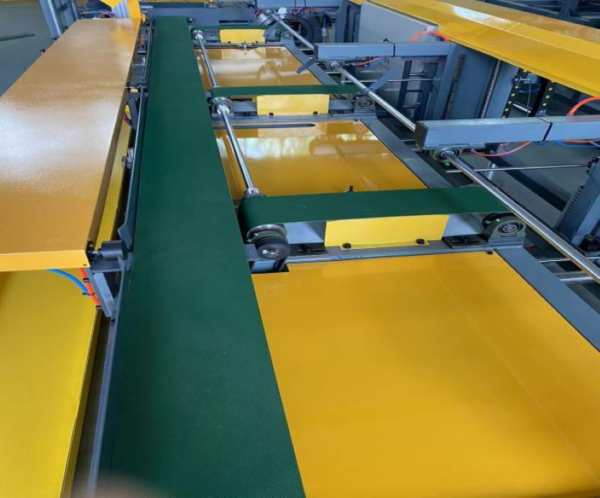

Feeding section: Anti slip belt, rubber soft head, no scratches.
Clamping section: Servo controlled, maintenance free, smooth transfer.

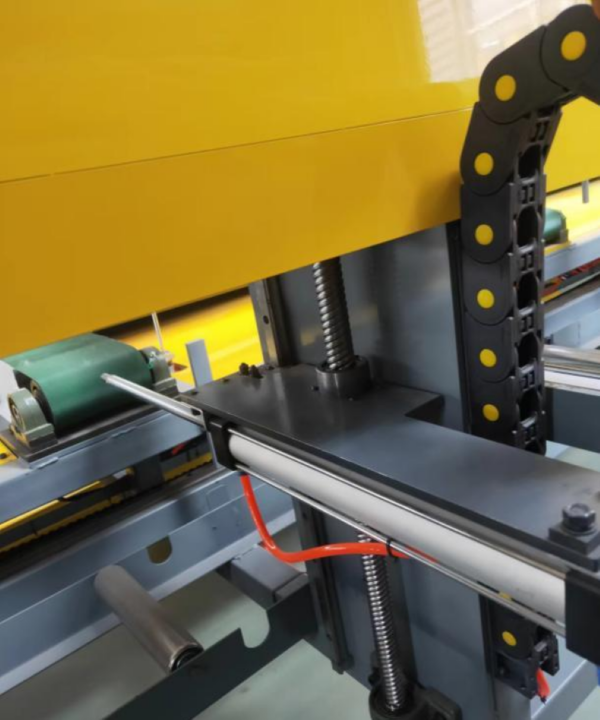

Stacking section: Screw drive, bent support plate, heavy duty square tube base.

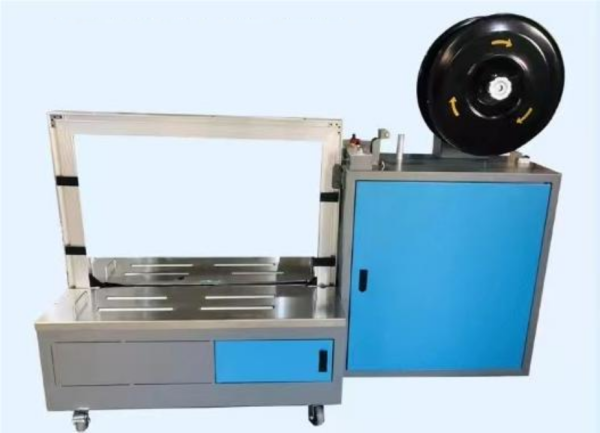

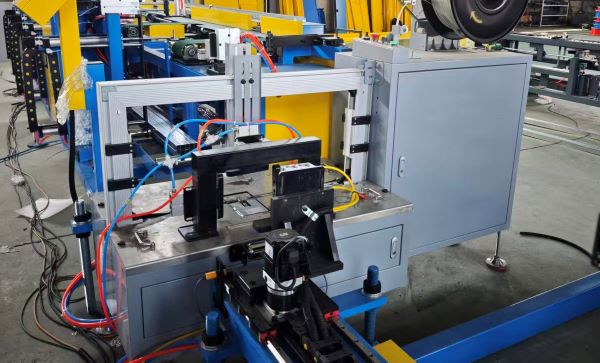

Packaging section: Fully automatic PP strapping, custom bottom frame.
Pulling section: Servo rack pinion, soft rubber clamp, adjustable pressure.

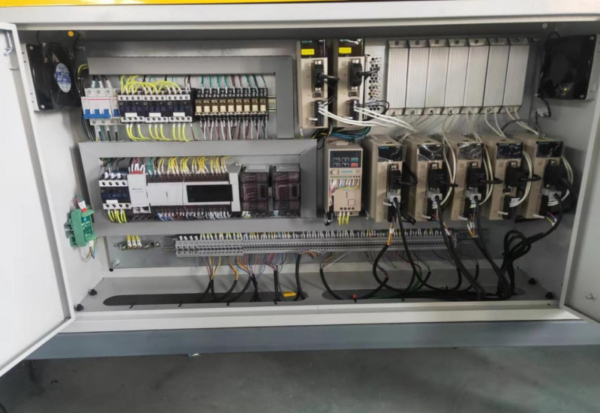

Electrical control: 5 Veichi servo units, Izumi relays, 50 formula storage.
2. What this means for your daily work
Less labor cost. One machine replaces several manual stackers. Your skilled workers can focus on more valuable tasks.
Consistent bundle quality. Neat, tight, uniform bundles every time. Your customers will notice.
Fast changeovers. Store up to 50 keel formulas. Switching takes seconds, not hours.
Safer workplace. No more heavy lifting or repetitive strain. The machine does the hard work.
Fully Automatic Workflow
a. Key features of the fully automatic control system
One button start. The machine handles feeding, arranging, stacking, and strapping automatically.
Recipe storage for up to 50 keel types. Just recall the saved formula, no reprogramming.
Real time alarms and safety checks. If something goes wrong, the system tells you exactly what.
Supports both English and Chinese interfaces.
b. Value delivered to you
You do not need a dedicated stacking team. One operator can monitor the machine while doing other tasks.
Changeover mistakes disappear. The machine remembers the exact settings for each product.
Your production line runs at full speed because the stacker never gets tired.
The machine automatically solves the problem of slow manual stacking and irregular bundling.
Compatible Production Lines and Applications
This purlin palletizer machine is mainly used in light steel keel manufacturing factories, specifically in the purline processing workshop and the finished product centralized packing workshop. It works smoothly with your existing forming line and decoiler.
It can be customized to suit the specific profiles produced by your machinery, enabling seamless integration with the vast majority of keel and purlin production lines. Once installed, this equipment effectively resolves issues related to inefficient manual stacking and irregular bundling. The bundling quantity is fully adjustable—for instance, 24 pieces per bundle (configured as 4×3×2), or any other layout configuration tailored to your specific requirements.
The machine fits most standard factory workshop spaces thanks to its integrated linear layout. The fixed overall floor dimensions (9.0m × 2.5m) are designed in line with standard factory specifications, making it suitable for placement and connection with most ordinary production lines.
Look, I do not know your exact workshop layout or daily output. That is fine. Tell me your line speed, profile sizes, and bundle requirements. We can figure out if this machine fits.
