Split Set System Machines Independent Production Line Combination
Our split set system machines are divided into five independent and complete single production lines. Each machine works alone to produce separate accessories, and all finished parts can be assembled together to make complete rock bolt products.It includes roll forming machine, dome plate press machine, necking machine, ring making machine and ring welding machine. Each line adopts 380V 3 phase industrial power supply, with independent power configuration and stable working performance, meeting different processing needs of rock bolt accessories.
Core Original Technical Parameters
| Single Production Line | Original Factory Standard Data |
| Roll forming machine power | 30kW |
| Forming working speed | 0-15m/min |
| Forming material thickness | 2.5mm-3.5mm |
| Dome plate press machine power | 15kW |
| Pressing material thickness | 5.0mm |
| Necking machine power | 3kW |
| Necking mould material | GCr12 |
| Ring making machine power | 2.2kW |
| General working voltage | 380V 3 phase 50/60Hz |
Every piece of equipment is an independent production unit, with independent frame, control system and power drive. There is no forced linkage between machines. Factories can purchase single equipment separately or match multiple lines according to their own production plan. This flexible collocation greatly reduces unnecessary equipment investment.
Independent Production Process Flow
Each single line has its own mature working flow, independent operation without mutual restriction:
- Raw material loading and automatic feeding
- Continuous rolling forming or stamping processing
- Fixed length cutting and precise shaping
- Independent finished part output and collection
- Separated storage of different bolt accessories
- Manual or mechanical unified assembly in the later stage

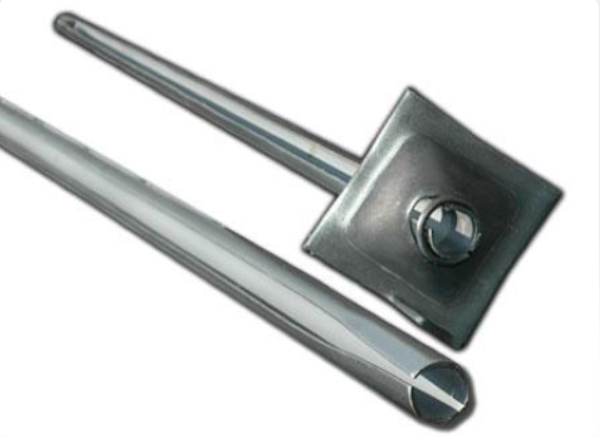

Finished Product Composition Features

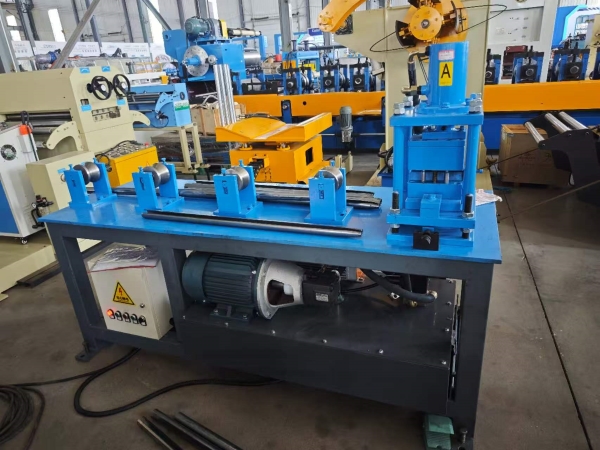

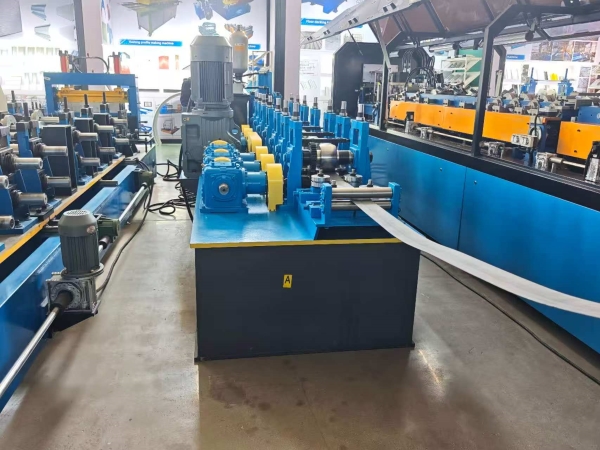

Each independent line produces a single special accessory for rock bolts.Roll forming line makes bolt main pipe body, pressing line produces end sealing plate, necking line completes pipe end shaping, ring making and welding lines produce fixed connecting rings. All parts are produced separately with high precision size, easy assembly and stable overall structure after combination.
Equipment Practical Advantages
Independent single line design brings higher production flexibility. You can start production with a small number of machines first, and expand equipment step by step later. Each machine has simple operation, low failure rate and convenient daily maintenance. High hardness mould materials and thickened frame structure ensure long-term stable independent operation.
Ending
We focus on modular and independent equipment design for rock bolt production. These split set system machines break the limitation of integrated line, let customers arrange production more freely. With reliable quality and flexible matching mode, we help more processing factories realize low-cost and high-efficiency rock bolt accessory production and assembly.
