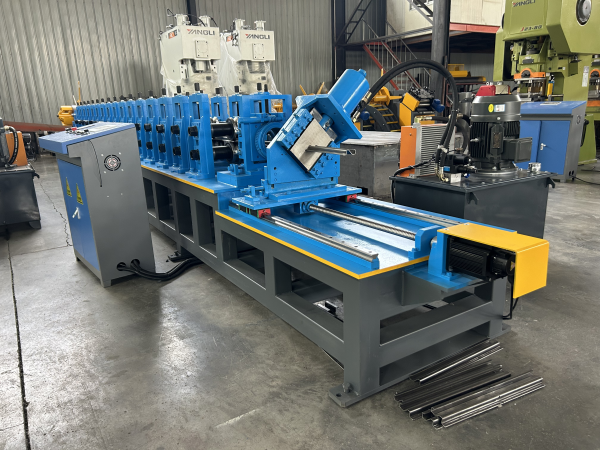

Powerful And Flexible Shelf Uprights Forming Machine

Warehouse space is getting more expensive every year. Racking manufacturers and wholesalers feel the pressure – your customers want more storage in the same footprint, but they also need different upright sizes for different loads.

So we built this shelf uprights forming machine around one simple idea: make more sizes with less equipment. Punch in the number on the PLC screen, and the machine handles the rest. Material thickness runs from 2.0 to 2.5 mm. No mechanical adjustments for the forming section. No hiring extra people to swap tooling.

If you supply uprights to racking installers, warehouse builders, or retail storage companies, read on. This machine might save you a lot of headaches.

What is a shelf upright roll forming machine used for?

The shelf upright roll forming machine is an automated industrial system that transforms flat metal coils into structural vertical posts for storage and pallet racking systems. It performs continuous decoiling, pre-punching, bending, and cutting to mass-produce high-strength, uniform profiles used in warehouses and retail environments.



These machines are specialized for several critical functions:

Technical Parameters Table

Production Flow

Here’s how it runs:



Machine components:

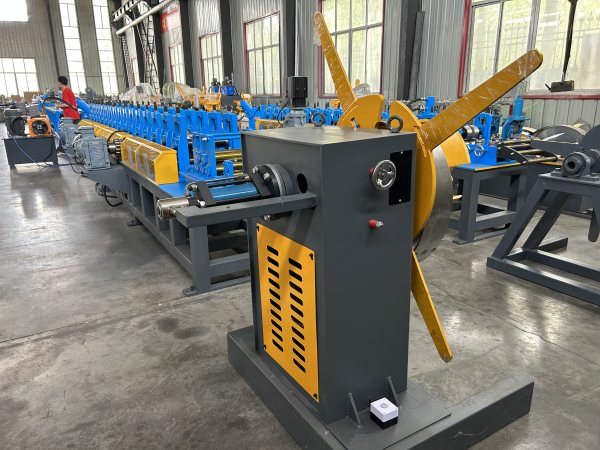

5t hydraulic decoiler with 1 set;

80t pneumatic Yangli press 1 set;

Servo feeder system 1 set;

Pneumatic material loop 1 set;

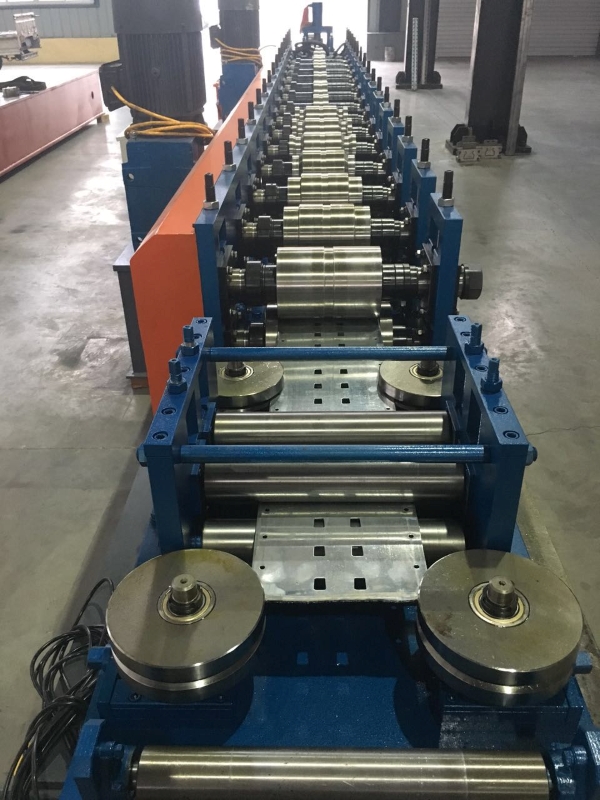

22kw forming machine 1 set;

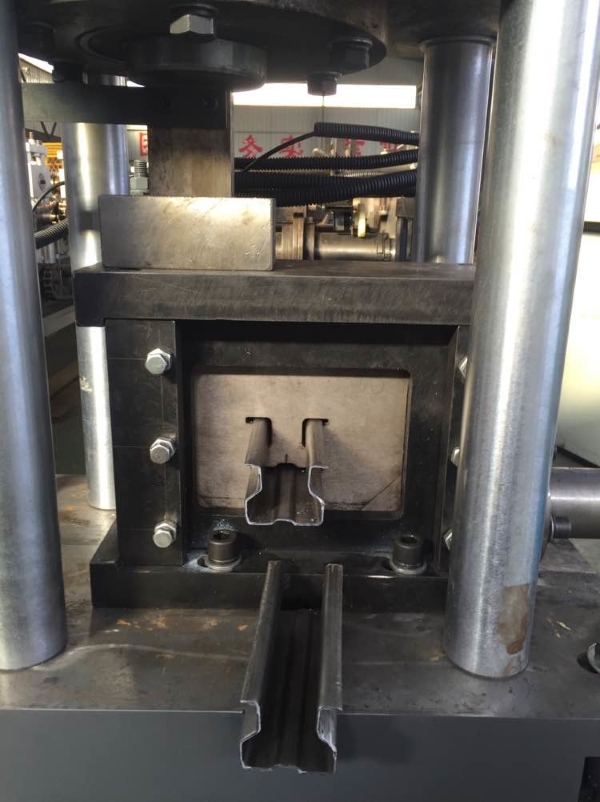

Tracking shearing device 1 set;

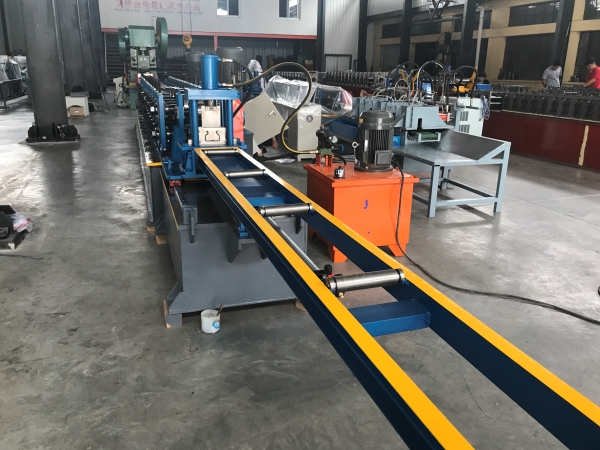

Hydraulic collect table 1 set;

11kw hydraulic station 1 set;Electric control system 1 set;

[Image suggestion: Add a simple flow diagram or a photo of the machine with numbered steps]

Value We Bring to Racking Manufacturers and Wholesalers

You’re not just buying a machine. You’re buying the ability to serve more customers with less equipment.

Output value: Running at over 20 meters per minute, with servo tracking shear that cuts without stopping, you push out more finished uprights per shift than any single-size machine. The automatic collecting table stacks finished goods while the line keeps running. Your labor cost per upright goes down. Your throughput goes up.

Service value: We send you a training video. Or come to our factory and we’ll train you in person. Your choice. We don’t disappear after the machine ships.

For racking manufacturers and wholesale upright suppliers, this machine turns coil steel into sellable inventory faster, with less headache, and lower capital tied up in equipment.

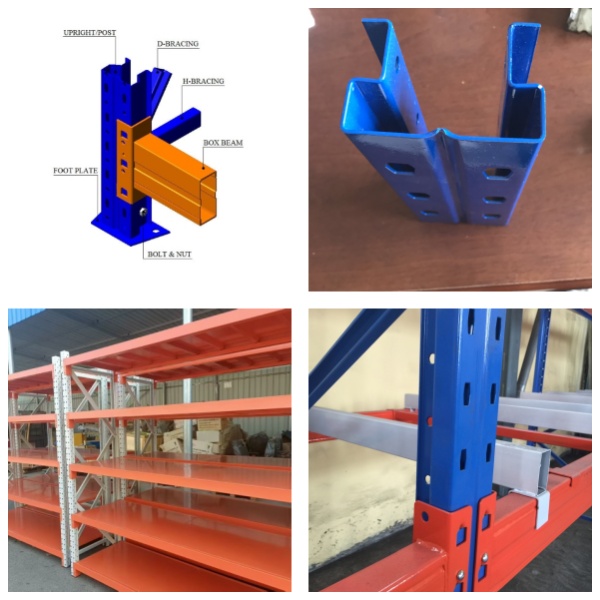

Finished Product Showcase & Applications

This machine produces uprights that go into storage systems everywhere. Here are the major markets:

Distribution Centers and Warehouses

Retail Storage and E-commerce Fulfillment Centers

Cold Storage and Food Distribution

Automotive Parts Warehousing

Pharmaceutical and Medical Distribution

Manufacturing Facilities

Hardware Stores and Retail Showrooms

Construction Material Suppliers

Simply put, if there’s a shelf or a rack standing up somewhere in the world, an upright made on this machine could be holding it. Your customers range from small local rack assemblers to multinational logistics providers.
