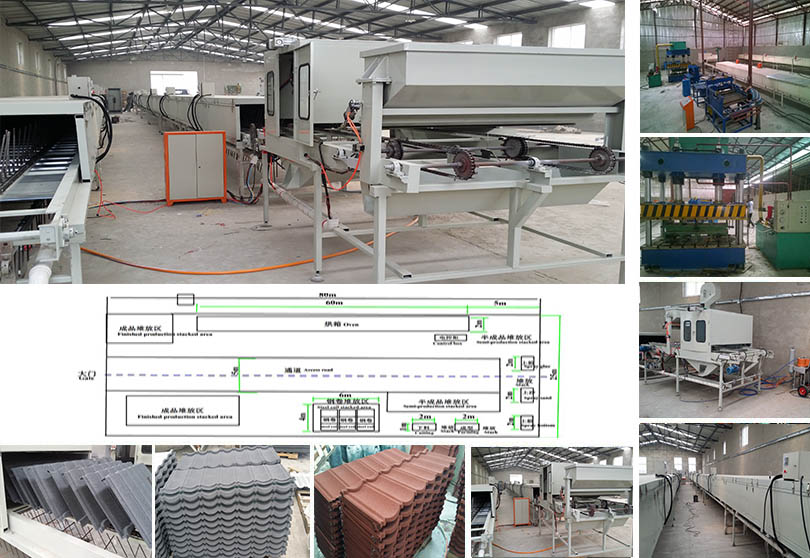

Zhongtuo stone coated roof tile roll forming machine is composed by the following five parts: automatic bottom glue spraying equipment, automatic sandblasting room, first drying room, automatic surface glue spraying equipment and the second drying room. All the stone coated tiles made by this machine are lightweight, durable, and easy to install, windproof, and have fashion and nice appearance. This machine has long shape but you can put it in any comfortable status, so it will not take up much space. Meanwhile all the working process is automatic, so only one person can run this machine.

Basic parameters of stone coated roof tile roll forming machine
Working speed 6-10 sheet/min or 2000-5000 sheet/day
Machine weight 20 ton
Total installed capacity AC380 50HZ
Material thickness 0.32-0.50mm
Steel plate width 1000-1450mm
Factory space requirement 25×80(m) temperature needs above 20 degree
Control system PCL

Zhongtuo stone coated roof tile roll forming machine Features of stone coated roof tiles made by our machine:

  1. Resist to artificial climate aging: 100h film no crack, no power, no bubbles, no obvious discoloration.
  2. Heat resistant:90± 2 no obvious change.
  3. Low temper resistant:-40
  4. Waterproof: 240h no problems.

Detail introduction of working process:

  1. Automatic bottom glue spraying equipment
Dimension 4000x1350x850mm
Transmission 2.2 kw
Conveying device Reciprocating chain covey
Automatic glue spraying assembly motor 0.06kw
Air compressor 1 set 0.9
Pressure glue canister 1 set pressure 0.1-0.6 MPA
Glue spraying gun 4 sets
Fill glue gun 5 set
  1. Automatic sandblasting room.
Dimension 3000x1850x700mm
Transmission Glue spraying with chain transmit
Structure Channel steel, angle steel, welded
Automatic sand hopper 1 set, dimension 550x600x500mm
Automatic rising machine 1 set Rising height:1.9m Power 300kg/h
Sand-blasting gun 4 set
  1. First drying room 1 se
Dimension 25000x800x1200mm
Structure Carbon steel welded
Frame type heat preservation wall Fill up with heat preservation material
Auto Temperature controller 2 sets, range from0-160 degree
Infrared fluorescent tube 50 pcs
Cooling device 1  set
  1. Automatic surface glue spraying equipment 1 set
Dimension 3000x850x700mm
Transmission Glue spraying with chain transmit
Structure Carbon steel welded
Glue spraying gun 2 set
Automatic spraying assembly 1 set range of pressure: 0.1-0.6 MPA
Adsorption of dust removal equipment 1 set
Manual spraying gun 5 sets
  1. Second drying room equipment componen
Dimension 3000x850x700mm
Transmission Glue spraying with chain transmit
Structure Carbon steel welded
Auto Temperature controller Adjustable 0-160 degree
Conveying device Reciprocating connection conveys 30m
Cooling device 1 set
Automatic printing code and making 1 set automatic printer
