R51+ Roof Decking Rolling Forming Machine galvanized steel floor deck forming machine

Description of R51+ deck panels roll forming machine

Cangzhou Zhongtuo Cold Roll Forming Machine Company is a leading manufacturer of various deck machines, such as roof deck machines, floor deck machines, and R51+ deck machines.

The unique design of the R51+ deck enables it to accommodate more sound-absorbing concrete than other deck types. Furthermore, the embossed ribs on the dovetail-shaped deck ensure a highly durable and permanent bond with the concrete, effectively reinforcing the slab.

Our R51+ deck machines are engineered with enhanced durability, utilizing a solid 90mm diameter shaft compared to the typical 85mm shaft found in standard deck machines. Additionally, they are equipped with more powerful motors—providing greater efficiency and performance.

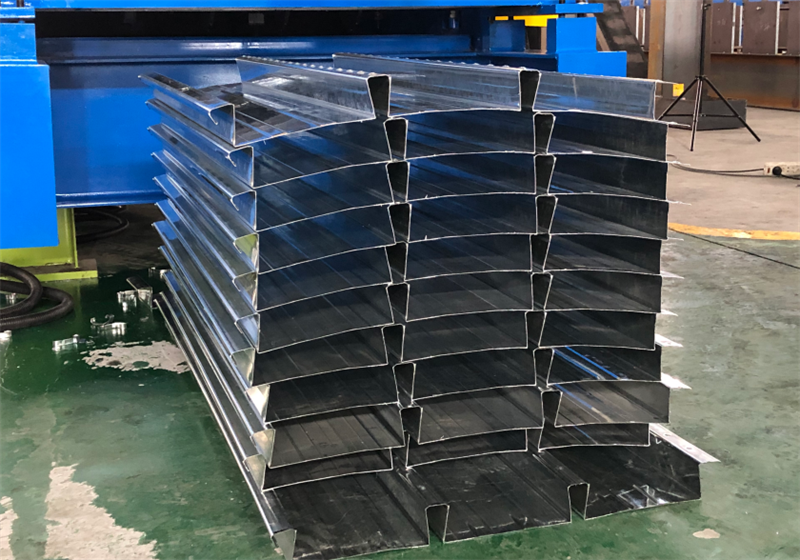

Description of R51+ deck panels

The R51+ profile is a classic re-entrant design frequently utilized in high-rise urban projects where the structural depth is constrained. This is because its relatively thin slab depth is sufficient to meet the typical 1-hour fire rating requirements, making it an ideal choice for buildings in dense city environments.

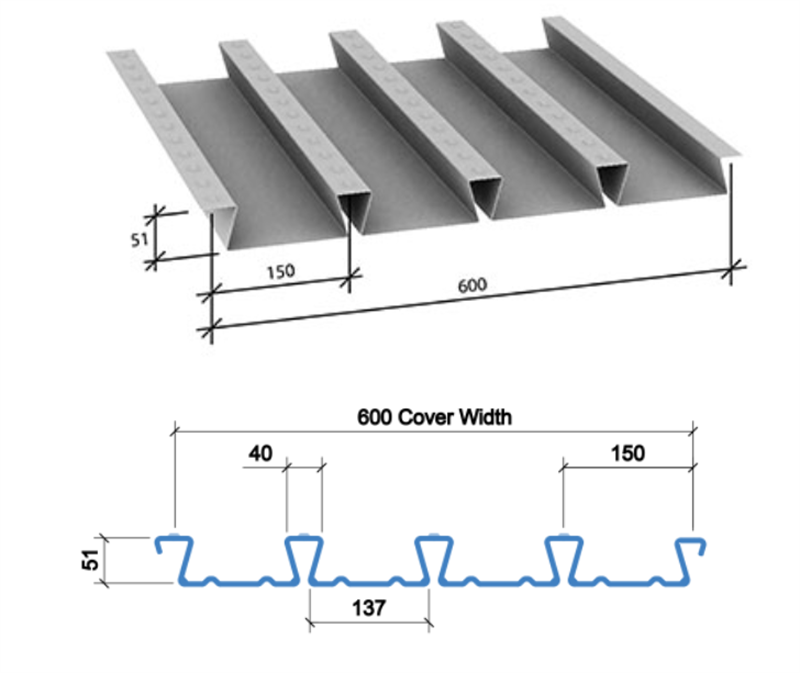

Profile drawing:

R50+ Roof Decking Description

• Deck Type: R51+ deck
• Available in 0.9mm, 1.0mm and 1.2mm gauges
• Manufactured from S350 and S450* grade galvanised steel
• Soffit service fixings available with 1 kN load capacit

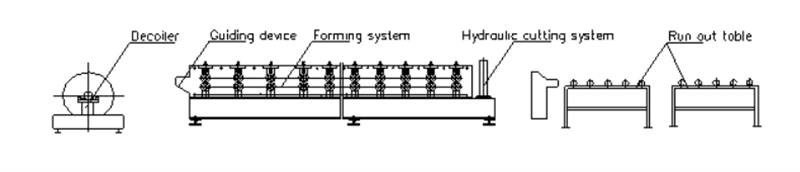

 The Decking Machine:

The technical specifications of the R50+ Roof Decking Rolling Forming Machine：

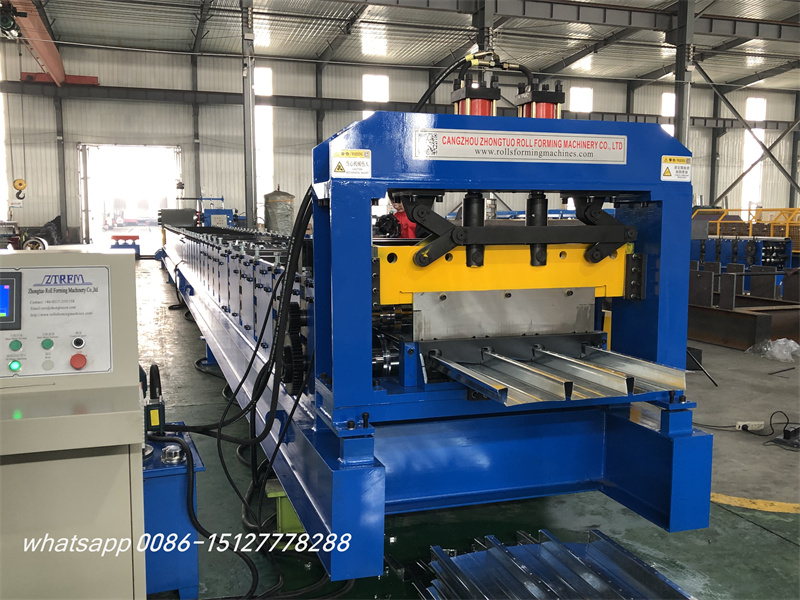

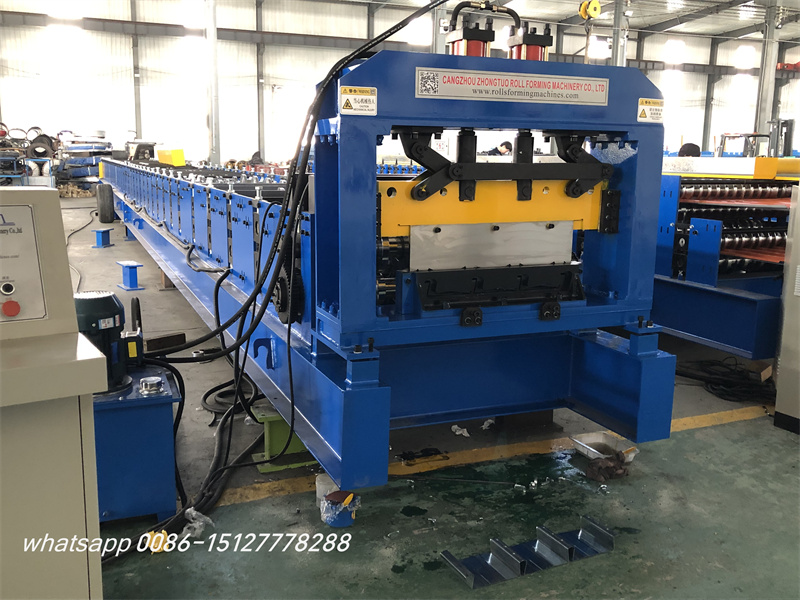

More pictures of the machine：
