Metal Stud Machine Benefits Over Wood Studs
Switching materials takes serious thought. You might be comparing samples at job sites or reading technical articles online. You want one question answered: after using wood for so many years, why switch to metal? We understand your hesitation. We put together this article to help you see the real differences.
The answer is simple. Metal studs are not just a more expensive new option. They set a better standard. Our metal stud machine helps you produce these quality studs efficiently. Whether you want to replace wood or expand your product line, this equipment fits your actual working conditions.
Core Value of Metal Studs
Let's get back to the question you started with. Whether a material is worth switching to depends on what problems it solves, not on whether it costs more or less than the old one. Wood studs have issues with fire, insects, moisture, and warping. These are not rare problems. They happen every time.
Metal studs use galvanized steel through a cold forming process. They solve all these issues at once. Here is how you decide whether to use metal studs:
-
Fire protection: does your project require fire rated construction?
-
Moisture resistance: is the installation area damp, like basements or kitchens?
-
Dimensional accuracy: does your ceiling or partition need to be flat without gaps?
If you answered yes to any of these, metal studs are your better choice.
Technical Reference Table
This table shows common configurations. Parameters can be adjusted to your needs.
| Parameter | Main T Roll Forming Machine | Cross T Roll Forming Machine | Wall Angle Roll Forming Machine |
|---|---|---|---|
| Finished size | 38×24×3600mm | 26×24×1200mm & 600mm | 22×22×3000mm |
| Forming steps | 18 steps | 16 steps | 8 roller sets |
| Forming speed | 0 to 25 m/min | 0 to 25 m/min | 0 to 40 m/min |
| Main motor power | 4kw | 4kw | 3.0 kw |
| Voltage | 380 v 50 hz 3 phase | 380 v 50 hz 3 phase | 380 v 50 hz 3 phase |
| Decoiler capacity | 1.5 tons | 1.5 tons | 1.5 tons |
| Decoiler inner diameter | 450 to 550 mm | 450 to 550 mm | 450 to 550 mm |
| Length tolerance | 3m+1.5mm | 3m+1.5mm | 3m±1.0mm |
Three Production Lines

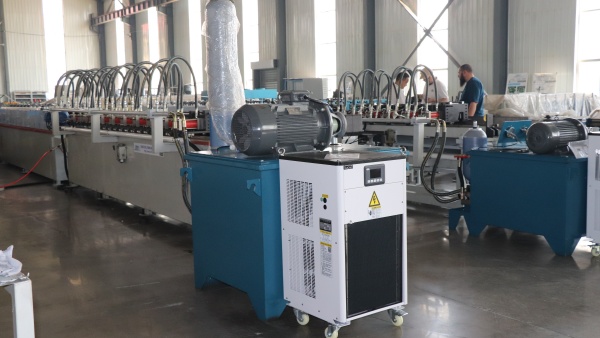

The metal stud machine actually consists of three independent production lines. Each makes one profile type.

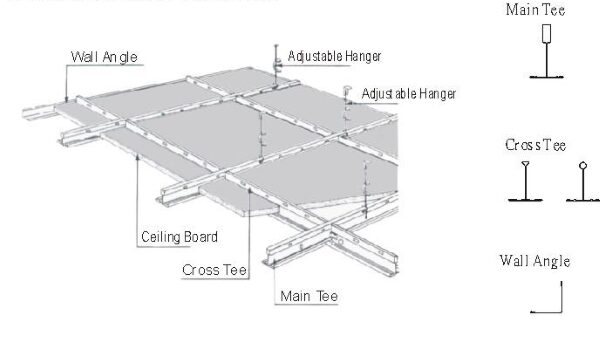

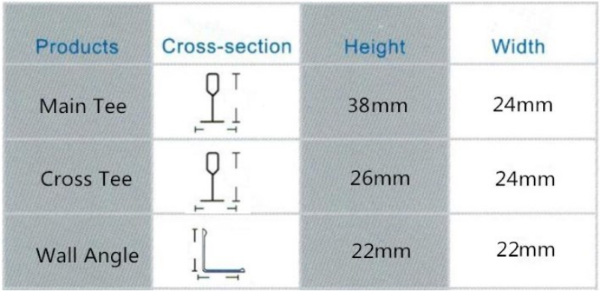

The first line produces main tees at 38×24×3600mm. These are the backbone of the ceiling system and carry all the weight. This line has 18 forming steps.
The second line produces cross tees at 26×24×1200mm and 600mm. These work with the main tees to create the grid pattern. Cross tees are the most used profile type. This line has 16 forming steps.

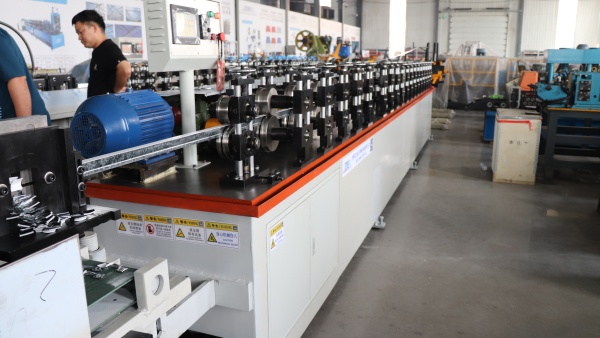

The third line produces wall angles at 22×22×3000mm. These fix to the wall for a clean finish. Wall angles are used the least but need the highest precision. This machine holds a tolerance of 3 meters plus or minus 1.0 millimeters.
The three lines run independently. You can run one line or all three at once depending on your orders.
From Coil to Finished Stud in One Machine

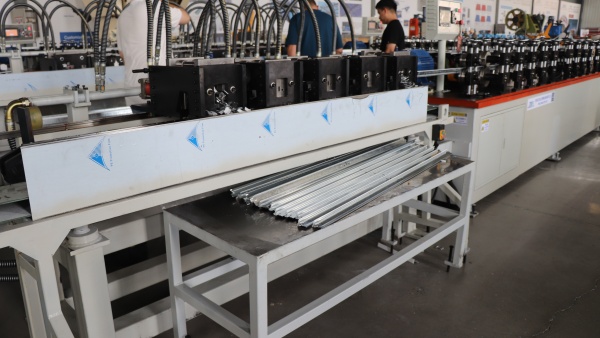

The metal stud machine follows a simple workflow. Steel coil goes onto the decoiler. The strip passes through the entry guide into the forming head. Multiple roller steps shape it continuously. Then the machine cuts it to the set length automatically. The whole process runs non stop with no manual handling between steps.

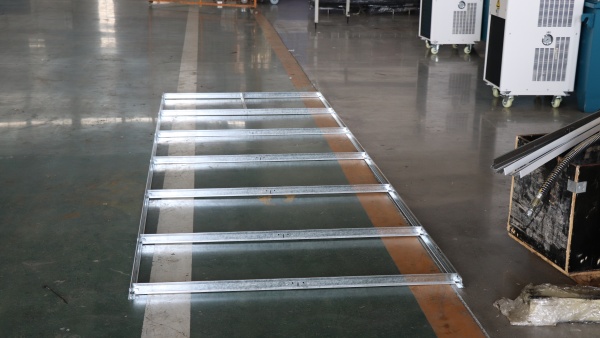

Main tees and cross tees work together. The main tees carry the structure, and cross tees create the grid. You can adjust length and quantity at any time based on your project needs. Whatever you need today, you produce today.
Application Areas
Metal studs are used in many different settings:
-

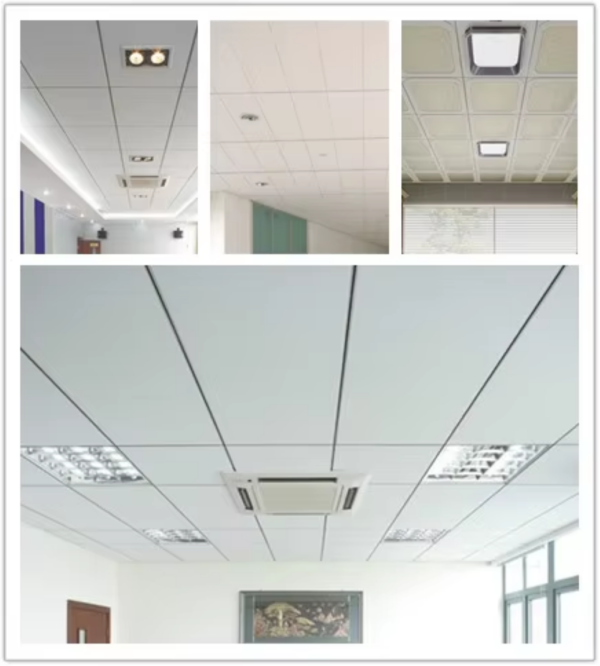

Office buildings, shopping malls, and hotels for ceiling systems
-
Hospitals, schools, and airports for partitions and ceilings
-
Residential interior walls and kitchen or bathroom ceilings
-
Clean rooms and laboratories where precision matters
-
Any project that needs fire protection, moisture resistance, or insect protection
Return on Investment
You might be calculating the equipment cost and how long it takes to pay back. There is no single answer because steel prices and stud selling prices vary by market. But here are some things to consider.
If wood stud prices are rising and supply is tightening in your area, the market for metal studs is growing. If your existing customers are asking about metal options, demand is building. If you want to enter commercial projects like offices, malls, or hospitals, metal studs are essentially required. If your current monthly stud purchases are already large, producing your own will give you a clear cost advantage.
We Are Here to Talk About Your Specific Needs
Whatever concerns you had when you first searched for information, we can address them. We can reconfigure a solution for your specific working conditions. If you are thinking about producing your own metal studs, or if you want to know whether the metal stud machine fits your workshop, share your situation with us. We will give you a reference plan with no charge and no pressure. If it works for you, we continue the conversation. If not, it's still good to connect.
